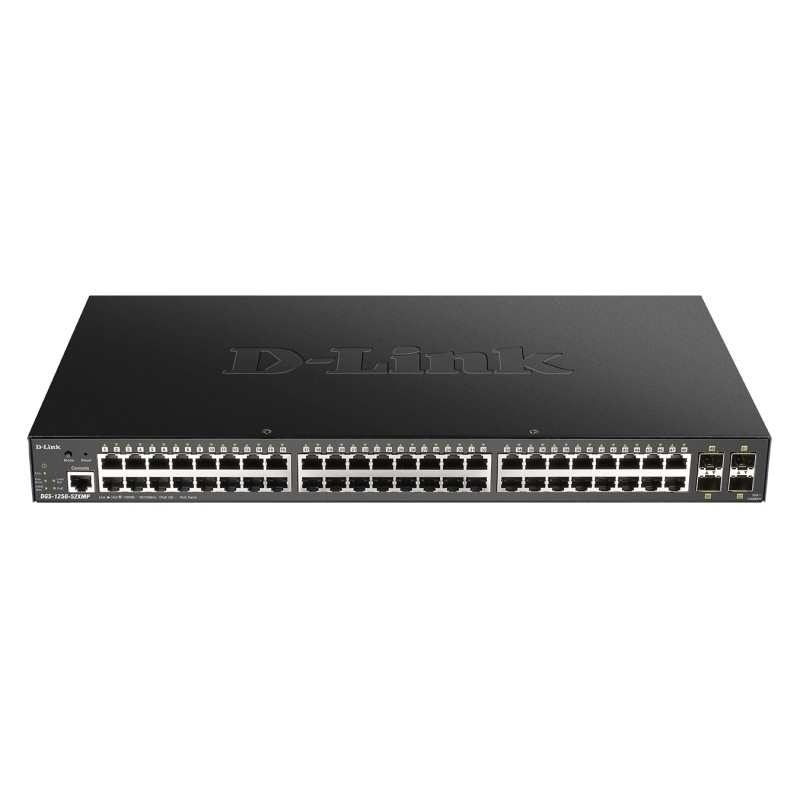

Cabinet Switch D-Link DGS-1250-52XMP 48x 370W Black

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1250-52XMP

Free shipping

$2,102.88

Qty:

Cabinet Switch D-Link DGS-1250-52XMP 48x 370W Black

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Easy Maintenance, Less Downtime The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime. Automatic Configuration The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (Vo IP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (Qo S) to be applied. High Po E Budget (370W) The DGS-1250 series offers Power-over-Ethernet (Po E), which simplifies deployment of IP cameras, Vo IP phones, Wireless Access Points, and other powered devices. Using the switch's management interface, an administrator can control various Po E functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All Po E models support the IEEE 802. 3af and 802. 3at standards.

95 Storage relative humidity (H-H) 0.
95 Storage temperature (T-T) -20.
70 Operating temperature (T-T) -5.
50 Heat dissipation 1512.

General
Device type	Switch - 52 ports - L3 Lite - smart - stackable
Enclosure type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE) + 4 x 10 Gigabit SFP+
Power over ethernet po e	PoE
Po e budget	370 W
Performance	Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps
Mac address table size	32K entries
Jumbo frame support	12KB
Routing protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Encryption algorithm	SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), reset button, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Multicast filtering function, TFTP client, Ethernet Ring Protection Switching (ERPS), cable test, system log, IP source guard, Deficit Round Robin (DRR), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), Web-based Access Control (WAC), LLDP-MED, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Ram	2 GB DDR3 SDRAM
Flash memory	64 MB
Status indicators	Power, error, fan, link/activity/speed, stack
Expansion connectivity
Interfaces	48 x 1000Base-T RJ-45 PoE - 15.4 W 4 x 10GBase-X SFP+ 1 x console RJ-45 management
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	467.3 Watt
Miscellaneous
Mtbf	309,053.10 hours
Compliant standards	VCCI, C-Tick, BSMI, cUL, CB, FCC
Dimensions weight
Width	44 cm
Depth	43 cm
Height	4.4 cm
Weight	3.85 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
