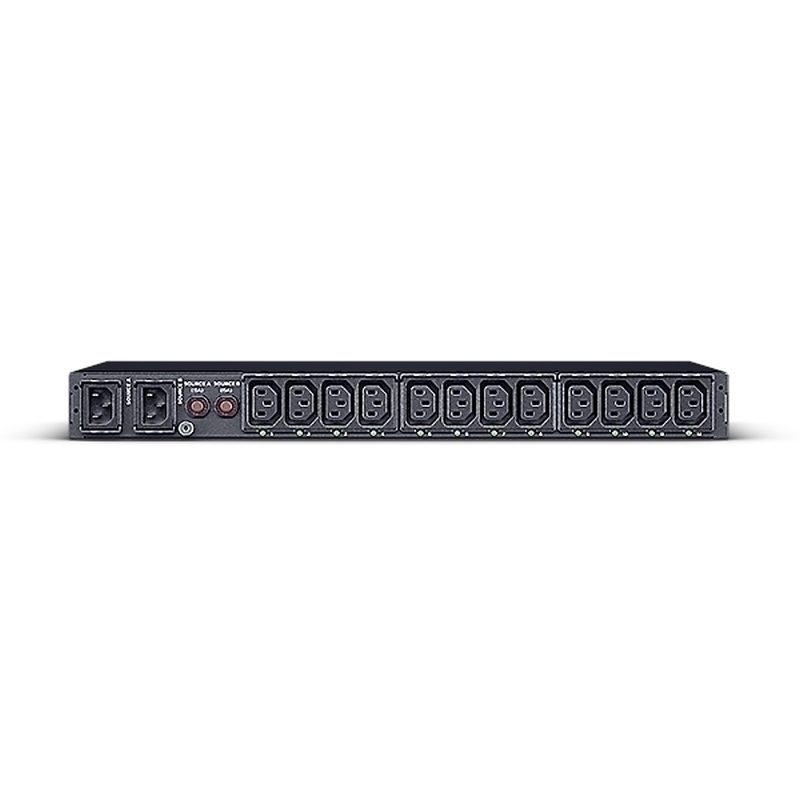

CyberPower 1U Switched ATS PDU Series [PDU44004]
CyberPower PDU44004, Managed, Switched, 1U, Single-phase, Grey, LCD, 12 AC outlet(s)CyberPower PDU44004 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
- 240 V Maximum current: 12 A AC input frequency: 50/60 Hz Operational conditions Operating temperature (T-T): 0
- 45 °C Storage temperature (T-T): -15
- 55 °C Operating relative humidity (H-H): 0
- 95% Storage relative humidity (H-H): 0
- 95% Operating altitude: 0
| Details |
| Ac input frequency | 50/60 Hz |
| Display | LCD |
| Daisy chain | Y |
| Storage relative humidity h h | 0 - 95% |
| Maximum current | 12 A |
| Pdu types | Managed, Switched |
| Rack capacity | 1U |
| Storage temperature t t | -15 - 55 °C |
| Cable length | 3.05 m |
| Operating temperature t t | 0 - 45 °C |
| Ethernet lan rj 45 ports | 4 |
| Sustainability certificates | RoHS |
| Usb ports quantity | 1 |
| Ac outlets quantity | 12 AC outlet(s) |
| Operating relative humidity h h | 0 - 95% |
| Sustainability compliance | Y |
| Monitoring | Current, Power, Voltage |
| Ac outlet types | C13 coupler, C19 coupler |
| Nominal input voltage | 200 - 240 V |
| On off switch | Y |
