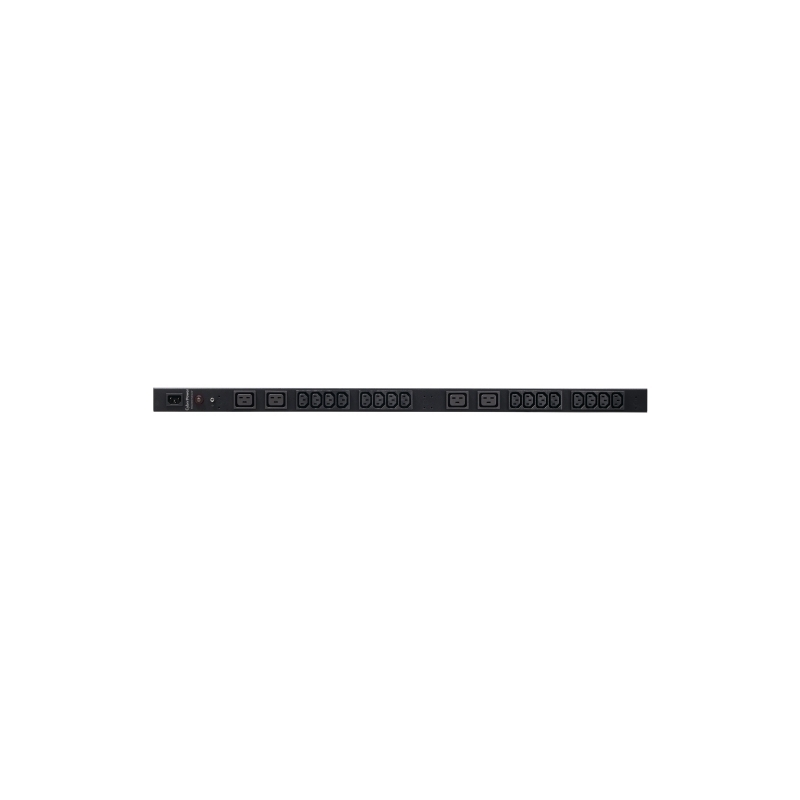

CyberPower Basic PDU10BVHVIEC20F 20-Outlets PDU - 4 x IEC

Manufacturer: Cyberpower

Availability: In stock

Manufacturer part number: PDU10BVHVIEC20F

Free shipping

$267.00

Qty:

CyberPower Basic PDU10BVHVIEC20F 20-Outlets PDU - 4 x IEC

Rackmount

It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications this unit has a rugged industrial-grade metal housing and a 10-foot AC power cord. It supports vertical horizontal and wall mount installation includes a cord retention tray and is ETL/RoHS certified.

Inputs: 1x IEC-320 C14
Outputs: 16x IEC-320 C13, 4x IEC-320 C19
Nominal Output Voltage: 200 ~ 230V
Nominal Input Voltage: 200 ~ 230V
Max Current: 10A (Derated to 8A)
Inputs: 1x IEC-320 C14
Outputs: 16x IEC-320 C13, 4x IEC-320 C19
Nominal Output Voltage: 200 ~ 230V
Nominal Input Voltage: 200 ~ 230V
Max Current: 10A (Derated to 8A)
Input Frequency: 50/60Hz
Mounting Options: 0U Rack-Mountable

General
Device type	Power distribution unit - rack-mountable
Height rack units	0U
Power device
Input voltage	AC 208/230 V
Frequency required	50/60 Hz
Input connectors	1 x power IEC 60320 C14
Power output connectors details	16 x power IEC 60320 C13 4 x power IEC 60320 C19
Output voltage	AC 208/230 V
Max electric current	10 A
Circuit protection	Circuit breaker
Miscellaneous
Cables included	Power cable - integrated - 3 m
Rack mounting kit	Included
Features	Overload protection, vertical orientation
Compliant standards	RoHS, ETL, UL 60950-1
Manufacturer warranty
Service support	Limited warranty - 2 years
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	0 - 95%
Dimensions weight
Width	4.5 cm
Depth	3.8 cm
Height	91.4 cm
Weight	2 kg

Overview
Contact Us

CyberPower Basic PDU10BVHVIEC20F 20-Outlets PDU - 4 x IEC

Rackmount

Inputs: 1x IEC-320 C14
Outputs: 16x IEC-320 C13, 4x IEC-320 C19
Nominal Output Voltage: 200 ~ 230V
Nominal Input Voltage: 200 ~ 230V
Max Current: 10A (Derated to 8A)
Inputs: 1x IEC-320 C14
Outputs: 16x IEC-320 C13, 4x IEC-320 C19
Nominal Output Voltage: 200 ~ 230V
Nominal Input Voltage: 200 ~ 230V
Max Current: 10A (Derated to 8A)
Input Frequency: 50/60Hz
Mounting Options: 0U Rack-Mountable

General
Device type	Power distribution unit - rack-mountable
Height rack units	0U
Power device
Input voltage	AC 208/230 V
Frequency required	50/60 Hz
Input connectors	1 x power IEC 60320 C14
Power output connectors details	16 x power IEC 60320 C13 4 x power IEC 60320 C19
Output voltage	AC 208/230 V
Max electric current	10 A
Circuit protection	Circuit breaker
Miscellaneous
Cables included	Power cable - integrated - 3 m
Rack mounting kit	Included
Features	Overload protection, vertical orientation
Compliant standards	RoHS, ETL, UL 60950-1
Manufacturer warranty
Service support	Limited warranty - 2 years
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	0 - 95%
Dimensions weight
Width	4.5 cm
Depth	3.8 cm
Height	91.4 cm
Weight	2 kg
