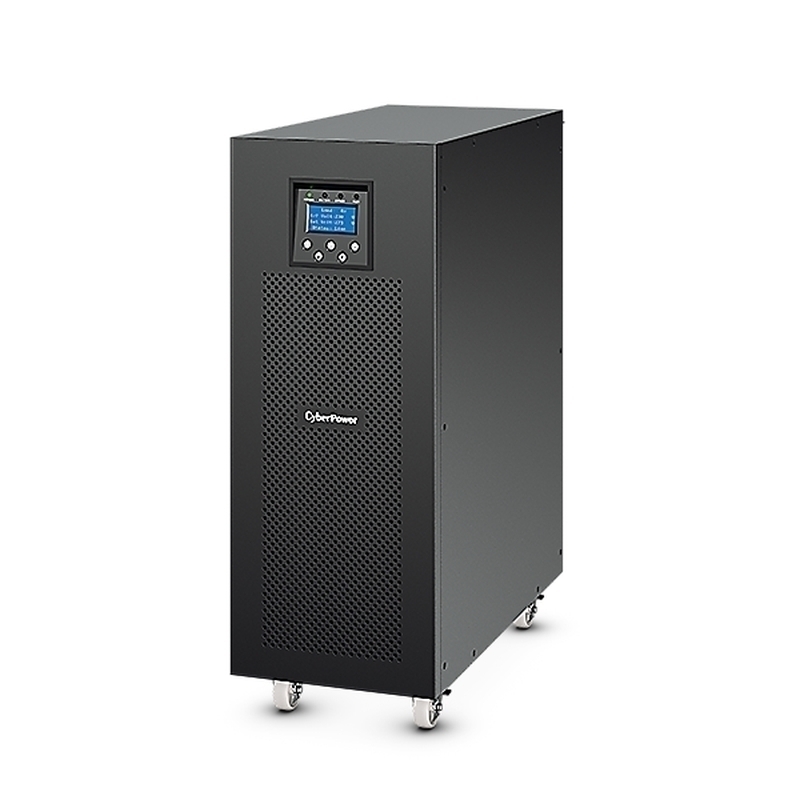

CyberPower OLS10000E Online Series - 10000VA Double Conversion Tower

Manufacturer: Cyberpower

Availability: Out of stock

Manufacturer part number: OLS10000E

Free shipping

$4,103.74

Qty:

CyberPower OLS10000E Online Series - 10000VA Double Conversion Tower

Rack-mountable · On-line · With Display

CyberPower OLS10000E is a high-performance UPS featuring online double-conversion topology, which provides seamless pure sine wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment. The product is equipped with a maintenance bypass switch. By flipping the switch, the power supply is safely transferred to utility. This allows service personnel to carry out fast on-site maintenance without having to shut down any connected equipment.

40 °CStorage temperature T-T: -15.
45 °COperating relative humidity H-H: 0.
90%Storage relative humidity H-H: 0.
95%Non-operating altitude: 0.
15000 m - Width: 260 mm - Depth: 550 mm - Height: 708 mm - Weight: 28 kg - Battery width: 26 cm - Battery depth: 55 cm - Battery height: 71.

General
Device type	UPS - active Power Factor Correction (PFC) - external
Colour	Black
Power device
Ups technology	On-line
Power modules qty	1
Supported power modules qty	15
Input voltage	AC 220 V
Input voltage range	AC 110 - 276 V
Frequency provided	50/60 Hz ± 10%
Frequency required	50/60 Hz ± 5Hz
Input connectors	1 x hardwire
Power output connectors details	1 x hardwire
Output voltage	AC 208/220/230/240 V ± 1% - 50/60 Hz
Max electric current	45.5 A
Power capacity	9000 Watt / 10000 VA
Output waveform	Sinewave
Surge suppression	Yes
Surge energy rating	445 Joules
Circuit protection	Fuse, circuit breaker
Efficiency	96% Eco mode
Power factor pf	0.99
Total harmonic distortion thd	5 %
Battery
Quantity	20
Technology	Lead Acid
Capacity	9 Ah
Run time up to	11 min at half load 4 min at full load
Networking
Remote management interface	RS-232, USB
Expansion connectivity
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off)
Expansion slots	Expansion Slot
Miscellaneous
Features	Metal housing, audible alarm, emergency power off, LCD display, built-in maintenance bypass, internal bypass, LED indicators, overload protection, cold-start function, Eco-efficiency, Smart Battery Management (SMB), start on battery
Compliant standards	RoHS
Software system requirements
Software included	PowerPanel Business Edition
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	0 - 90% (non-condensing)
Dimensions weight
Width	26 cm
Depth	55 cm
Height	70.8 cm
Weight	86 kg
Dimensions weight shipping
Shipping width	42.8 cm
Shipping depth	72 cm
Shipping height	97 cm
Shipping weight	98 kg

Overview
Contact Us

CyberPower OLS10000E Online Series - 10000VA Double Conversion Tower

Rack-mountable · On-line · With Display

40 °CStorage temperature T-T: -15.
45 °COperating relative humidity H-H: 0.
90%Storage relative humidity H-H: 0.
95%Non-operating altitude: 0.
15000 m - Width: 260 mm - Depth: 550 mm - Height: 708 mm - Weight: 28 kg - Battery width: 26 cm - Battery depth: 55 cm - Battery height: 71.

General
Device type	UPS - active Power Factor Correction (PFC) - external
Colour	Black
Power device
Ups technology	On-line
Power modules qty	1
Supported power modules qty	15
Input voltage	AC 220 V
Input voltage range	AC 110 - 276 V
Frequency provided	50/60 Hz ± 10%
Frequency required	50/60 Hz ± 5Hz
Input connectors	1 x hardwire
Power output connectors details	1 x hardwire
Output voltage	AC 208/220/230/240 V ± 1% - 50/60 Hz
Max electric current	45.5 A
Power capacity	9000 Watt / 10000 VA
Output waveform	Sinewave
Surge suppression	Yes
Surge energy rating	445 Joules
Circuit protection	Fuse, circuit breaker
Efficiency	96% Eco mode
Power factor pf	0.99
Total harmonic distortion thd	5 %
Battery
Quantity	20
Technology	Lead Acid
Capacity	9 Ah
Run time up to	11 min at half load 4 min at full load
Networking
Remote management interface	RS-232, USB
Expansion connectivity
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off)
Expansion slots	Expansion Slot
Miscellaneous
Features	Metal housing, audible alarm, emergency power off, LCD display, built-in maintenance bypass, internal bypass, LED indicators, overload protection, cold-start function, Eco-efficiency, Smart Battery Management (SMB), start on battery
Compliant standards	RoHS
Software system requirements
Software included	PowerPanel Business Edition
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	0 - 90% (non-condensing)
Dimensions weight
Width	26 cm
Depth	55 cm
Height	70.8 cm
Weight	86 kg
Dimensions weight shipping
Shipping width	42.8 cm
Shipping depth	72 cm
Shipping height	97 cm
Shipping weight	98 kg
