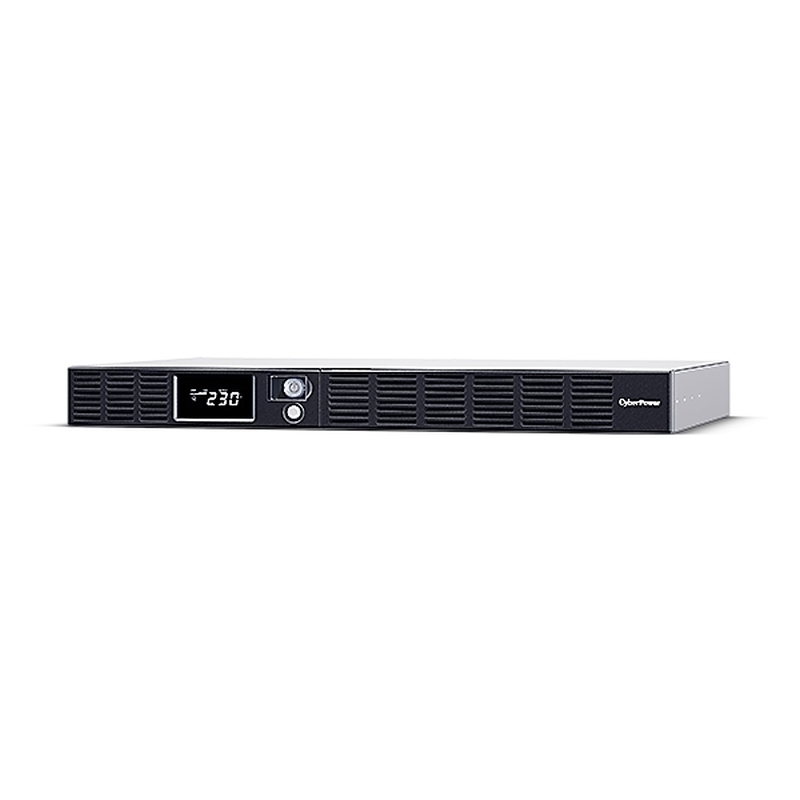

CyberPower OR1500ERM1U 1500VA/900W 1U Line Interactive Ups
Rack-mountable · AVR · Line-interactive · With Display · Hot SwappableCyberPower OR1500ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment. The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from being subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.
- 40 °C Storage temperature (T-T): -15
- 45 °C Operating relative humidity (H-H): 0
- 95% Storage relative humidity (H-H): 0
| General |
| Device type | UPS - rack-mountable |
| Height rack units | 1U |
| Colour | Silver |
| Power device |
| Ups technology | Line interactive |
| Input voltage | AC 230 V |
| Input voltage range | AC 165 - 271 V |
| Input voltage range adjustable | AC 253 - 271 / 189 - 207 V |
| Frequency provided | 50/60 Hz |
| Input wiring | 1-phase |
| Frequency required | 50/60 Hz |
| Input connectors | 1 x power IEC 60320 C14 |
| Power output connectors details | 4 x power IEC 60320 C13 (UPS and surge) 2 x power IEC 60320 C13 (surge) |
| Output voltage | AC 230 V ± 10% - 50/60 Hz |
| Power capacity | 900 Watt / 1500 VA |
| Dataline surge protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output waveform | Stepped approximation to a sinewave |
| Surge energy rating | 810 Joules |
| Circuit protection | Circuit breaker |
| Power factor pf | 0.6 |
| Battery |
| Quantity | 1 |
| Technology | Lead Acid |
| Run time up to | 2.5 min at full load 11 min at half load |
| Recharge time | 8 hours |
| Transfer time | 4 ms |
| Networking |
| Remote management interface | Ethernet, RS-232, USB |
| Expansion connectivity |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B 2 x LAN - RJ-45 |
| Expansion slots | 1 (total) / 1 (free) x SNMP |
| Miscellaneous |
| Cables included | USB cable - external Power cable - integrated - 1.83 m |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, GreenPower UPS Bypass Technology |
| Compliant standards | RoHS |
| Software system requirements |
| Software included | PowerPanel Business Edition |
| Environmental parameters |
| Min operating temperature | 0 °C |
| Max operating temperature | 40 °C |
| Humidity range operating | 0 - 95% |
| Dimensions weight |
| Width | 43.3 cm |
| Depth | 38.9 cm |
| Height | 4.4 cm |
| Weight | 14.9 kg |
