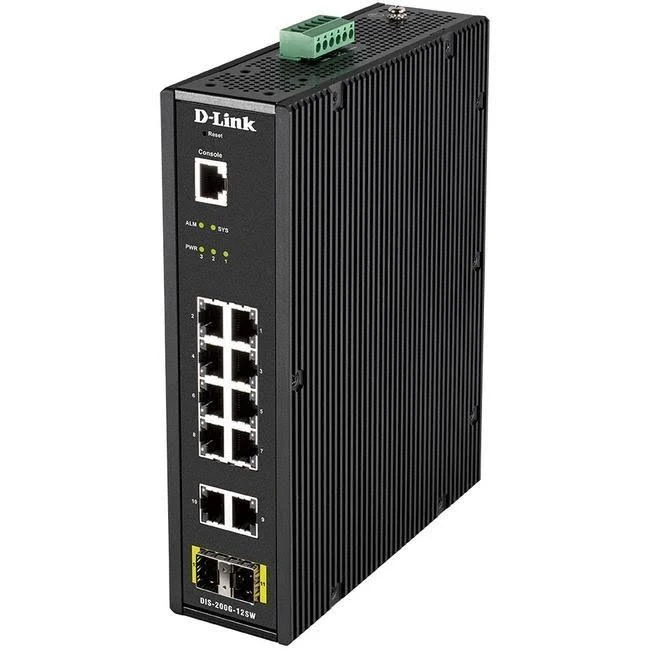

D-Link 12-Port Gigabit Industrial Smart Managed Switch with 10 1000BASE-T Ports and 2 SFP DIS-200G-12SW

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DIS-200G-12SW

Free shipping

$1,841.86

Qty:

D-Link 12-Port Gigabit Industrial Smart Managed Switch with 10 1000BASE-T Ports and 2 SFP DIS-200G-12SW

Gigabit Ethernet · VLAN · Switches · Managed

These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G series furthermore integrate advanced management and security functions to provide a complete solution.

Features 10 networking ports to easily establish a local network or expand your existing one
Gigabit Ethernet port for ultra-fast network speeds
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Management capability provides control over setup and configuration of your network
Rack mounting enables you to organize wires & secure cables for professional installation

General
Device type	Switch - 10 ports - smart
Enclosure type	DIN rail mountable, wall-mountable
Subtype	Gigabit Ethernet
Ports	10 x 10/100/1000 + 2 x SFP
Performance	Switching capacity: 24 Gbps Throughput (64-byte packet size): 17.85 Mpps
Mac address table size	8K entries
Jumbo frame support	9216 bytes
Routing protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote management protocol	Telnet, CLI
Encryption algorithm	SSL
Authentication method	RADIUS
Features	Flow control, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, IPv4 support, fanless, LLDP support, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, 512KB packet buffer, Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority (SP), tagged VLAN, TFTP client, 802.1x authentication, Ethernet Ring Protection Switching (ERPS), Digital Diagnostics Monitoring (DDM), Authentication, Authorization and Accounting (AAA), Web-based Access Control (WAC), Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Ram	128 MB
Flash memory	32 MB
Status indicators	Status
Expansion connectivity
Interfaces	10 x 1000Base-T RJ-45 2 x 1000Base-X SFP 1 x console RJ-45
Power
Voltage required	AC 120/230 V / DC 46 - 54 V (50/60 Hz)
Miscellaneous
Included accessories	DIN-rail mounting kit, wall mounting kit
Cables included	1 x console cable
Compliant standards	UL, C-Tick, BSMI, IEC 61000-4-5, FCC, IP30
Software system requirements
Software included	Drivers & Utilities
Dimensions weight
Width	21 cm
Depth	17.12 cm
Height	4.8 cm
Environmental parameters
Min operating temperature	-40 °C
Max operating temperature	75 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-40 °C
Max storage temperature	85 °C
Humidity range storage	0 - 95% (non-condensing)
