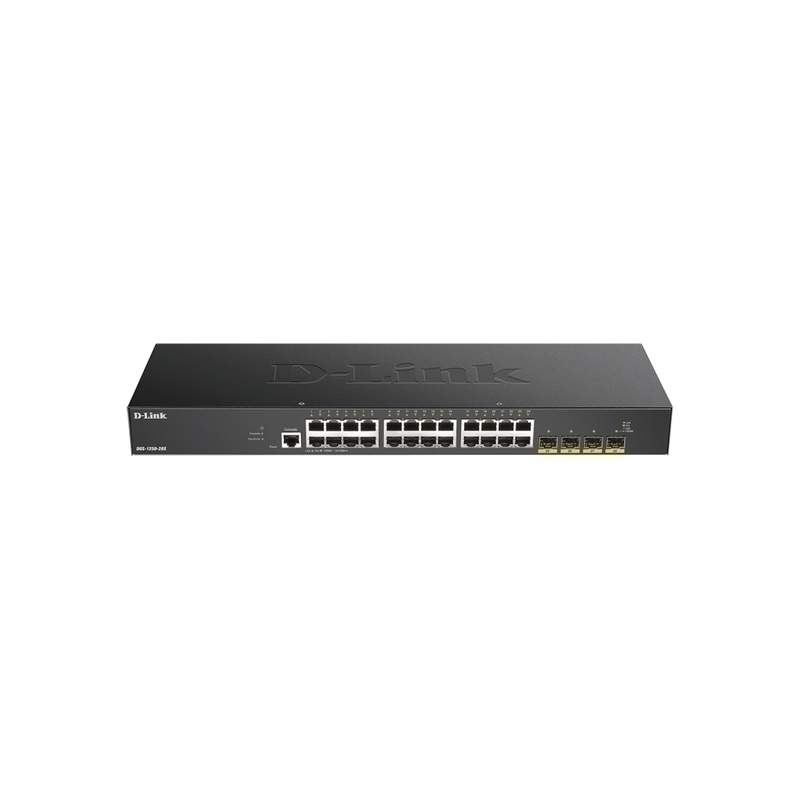

D-Link 28-Port Gigabit Smart Managed Switch with 2- DGS-1250-28X

Gigabit Ethernet · VLAN · Switches · Managed

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1250-28X

Free shipping

$603.94

Qty:

D-Link 28-Port Gigabit Smart Managed Switch with 2- DGS-1250-28X

Gigabit Ethernet · VLAN · Switches · Managed

Power & Value The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features. Easy Maintenance, Less Downtime The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime. Automatic Configuration The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Extensive Management and Advanced Features The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network. Management Versatility The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level.

50 °C Storage temperature (T-T): -20.
70 °C Operating relative humidity (H-H): 0.
95% Storage relative humidity (H-H): 0.
95% Heat dissipation: 104.

General
Device type	Switch - 28 ports - L3 Lite - smart - stackable
Enclosure type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance	Switching capacity: 128 Gbps Forwarding performance: 95.24 Mpps
Mac address table size	16K entries
Jumbo frame support	12KB
Routing protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Encryption algorithm	SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), reset button, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Multicast filtering function, TFTP client, Ethernet Ring Protection Switching (ERPS), cable test, system log, IP source guard, Deficit Round Robin (DRR), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), Web-based Access Control (WAC), LLDP-MED, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
Processor	: 1 GHz
Ram	2 GB DDR3 SDRAM
Flash memory	64 MB
Status indicators	Error, fan, link/activity/speed, stack
Expansion connectivity
Interfaces	24 x 1000Base-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 management
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	30.6 Watt
Miscellaneous
Mtbf	743,482.45 hours
Compliant standards	VCCI, C-Tick, BSMI, cUL, CB, FCC
Dimensions weight
Width	44 cm
Depth	14 cm
Height	4.4 cm
Weight	3.86 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
