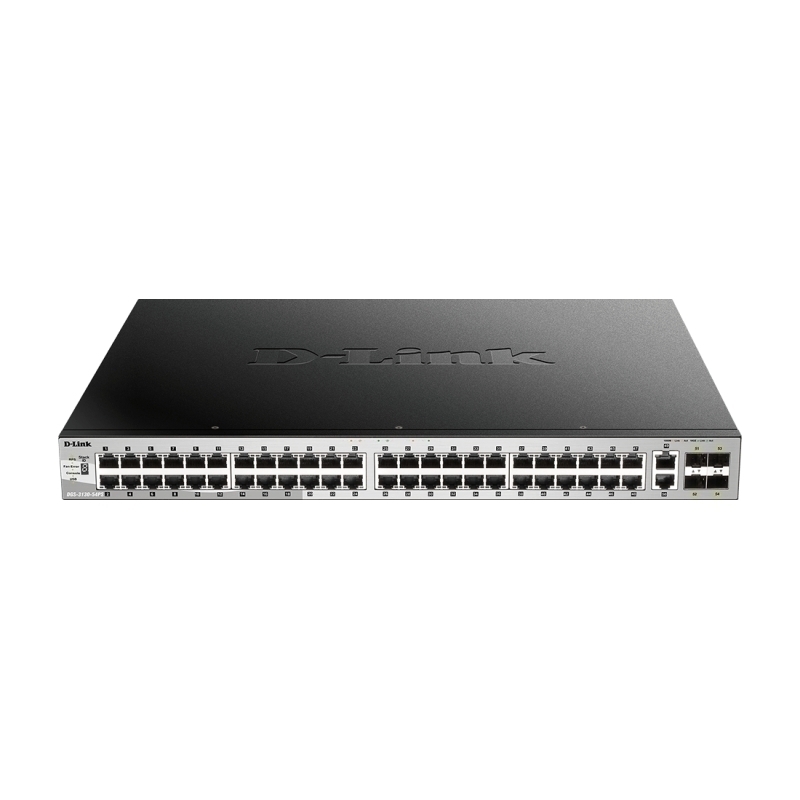

D-Link 54 Port Stackable Gigabit PoE Switch with 6- DGS-3130-54PS

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DGS-3130-54PS

Free shipping

$3,980.22

Qty:

D-Link 54 Port Stackable Gigabit PoE Switch with 6- DGS-3130-54PS

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Adaptable, Bottleneck-Free 10G Business Connectivity The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments. With network bottlenecks on the rise, the DGS-3130 Series's six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands. Why You Want It Highly Reliable Redundant power supply (RPS) support, Ethernet Ring Protection (ERPS) and 6 kV surge protection on all GE and RJ-45 access ports. Feature-Rich Unified Software Powerful L2 and L3 features such as Static Route, RIP/RIPng and OSPFv2/v3. Scalable and Highly Available Supports high bandwidth stacking and fault tolerant topologies. Easy Access Control Support for 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC). Weather the Storm The DGS-3130 Series features built-in 6 kV surge protection on all PoE and non-PoE Gigabit Ethernet access ports without needing external surge protection. This effectively protects the switches against sudden electrical surges caused events such as lightning strikes or unstable electrical current. This significantly reduces the chances of equipment being damaged, effectively lowering maintenance costs by minimizing the need for expensive repairs or replacement.

Features 50 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Can work as layer 3 routing for scalable network design
Features 50 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Can work as layer 3 routing for scalable network design
Management capability provides control over setup and configuration of your network
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 48 ports - L3 Lite - Managed - stackable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 4 x 10 Gigabit SFP+
Power over ethernet po e	PoE+
Po e budget	370 W
Performance	Switching capacity: 216 Gbps Forwarding performance (64-byte packet size): 161 Mbps
Capacity	Packet buffer size: 4 MB Units per virtual stack: up to 32 IGMP groups: 1024
Mac address table size	16384 entries
Jumbo frame support	9KB
Routing protocol	RIP, IGMPv2, IGMP, IGMPv3, RIPng, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, RMON 2, SNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, SFTP
Encryption algorithm	SSL, SSL 3.0, SSL 2.0
Features	Flow control, BOOTP support, load balancing, IGMP snooping, port mirroring, Broadcast Storm Control, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Network Access Protection (NAP), bandwidth control, DHCP relay, IP-MAC binding, SNMP trap, DHCP client, Management Information Base (MIB), Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), tagged VLAN, TFTP client, SFTP server, Single IP Management (SIM), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), 4 fans, Single Rate Three Color Marking (SRTCM), Storm Control, system log, Management Information Base (MIB) II, fast leave, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, Voice VLAN, Private VLAN, Guest VLAN, BPDU Filter, Weighted Round Robin (WRR), MAC based VLAN, Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Two Rate Three Color Marker (trTCM), Telnet server, Telnet client, VLAN trunking, Root Restriction, ISM VLAN, Asymmetric VLAN
Compliant standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3d, IEEE 802.1v, IEEE 802.3at, ITU-T G.8032
Expansion connectivity
Interfaces	48 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 10GBase-T RJ-45 2 x 10GBase-X SFP+ 1 x 10/100/1000 Base-T RJ-45 console 1 x 10/100/1000 Base-T RJ-45 management 1 x USB 2.0 Type A
Power
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Mtbf	356,876 hours
Compliant standards	FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Dimensions weight
Width	44 cm
Depth	35 cm
Height	4.4 cm
Weight	5.14 kg
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	10 - 90%
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	5 - 90%

Overview
Contact Us

D-Link 54 Port Stackable Gigabit PoE Switch with 6- DGS-3130-54PS

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Features 50 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Can work as layer 3 routing for scalable network design
Features 50 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Can work as layer 3 routing for scalable network design
Management capability provides control over setup and configuration of your network
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 48 ports - L3 Lite - Managed - stackable
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 (PoE+) + 2 x 10Gb Ethernet + 4 x 10 Gigabit SFP+
Power over ethernet po e	PoE+
Po e budget	370 W
Performance	Switching capacity: 216 Gbps Forwarding performance (64-byte packet size): 161 Mbps
Capacity	Packet buffer size: 4 MB Units per virtual stack: up to 32 IGMP groups: 1024
Mac address table size	16384 entries
Jumbo frame support	9KB
Routing protocol	RIP, IGMPv2, IGMP, IGMPv3, RIPng, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, RMON 2, SNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, SFTP
Encryption algorithm	SSL, SSL 3.0, SSL 2.0
Features	Flow control, BOOTP support, load balancing, IGMP snooping, port mirroring, Broadcast Storm Control, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Network Access Protection (NAP), bandwidth control, DHCP relay, IP-MAC binding, SNMP trap, DHCP client, Management Information Base (MIB), Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), tagged VLAN, TFTP client, SFTP server, Single IP Management (SIM), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), 4 fans, Single Rate Three Color Marking (SRTCM), Storm Control, system log, Management Information Base (MIB) II, fast leave, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, Voice VLAN, Private VLAN, Guest VLAN, BPDU Filter, Weighted Round Robin (WRR), MAC based VLAN, Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Two Rate Three Color Marker (trTCM), Telnet server, Telnet client, VLAN trunking, Root Restriction, ISM VLAN, Asymmetric VLAN
Compliant standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3d, IEEE 802.1v, IEEE 802.3at, ITU-T G.8032
Expansion connectivity
Interfaces	48 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 10GBase-T RJ-45 2 x 10GBase-X SFP+ 1 x 10/100/1000 Base-T RJ-45 console 1 x 10/100/1000 Base-T RJ-45 management 1 x USB 2.0 Type A
Power
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Mtbf	356,876 hours
Compliant standards	FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Dimensions weight
Width	44 cm
Depth	35 cm
Height	4.4 cm
Weight	5.14 kg
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	10 - 90%
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	5 - 90%
