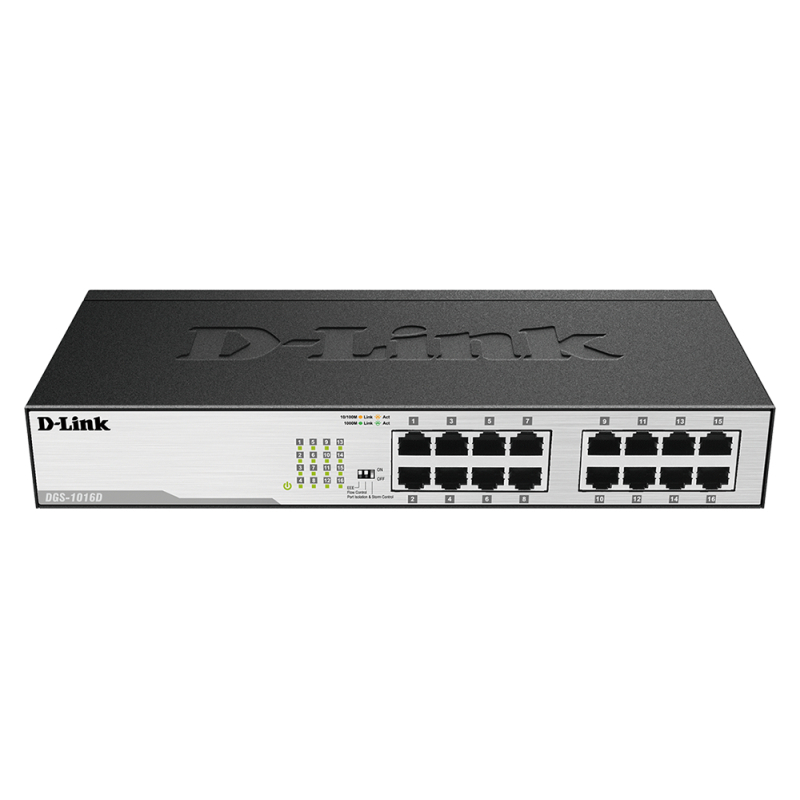

D Link DGS 1016D 16 Port Gigabit Unmanaged Switch

D-Link · Gigabit Ethernet · Switches · Unmanaged · 16 Ethernet ports · 16 count

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1016D

Free shipping

$176.99

Qty:

D Link DGS 1016D 16 Port Gigabit Unmanaged Switch

D-Link · Gigabit Ethernet · Switches · Unmanaged · 16 Ethernet ports · 16 count

Getting your network up and running is easy with the D-Link DGS-1016D 16 Port Unmanaged Gigabit Switch. With no need for crossover cables or uplink ports, you can simply connect your computer to the switch via a compatible Ethernet cable and enjoy high speed connections instantly. The switch also comes with innovative D-Link Green technology features to save power and reduce your energy consumption. There are 16 inbuilt Gigabit Ethernet ports for fast connections. Link status detection feature automatically cuts power to any idle or unused port to save energy. The power saving feature analyses Ethernet cable lengths and adjusts power supply to the port accordingly. The compact design includes a metal case with enhanced heat dissipation. It has a unique, fanless design for silent operation. It has LED lights which detects and alerts you to any network errors. It features easy plug-and-play setup so you can get started right away.

Save power and get an amazingly fast internet connection.
Reduces power consumption & creates less heat.
Extended product life.
Reduces operating costs.

General
Device type	Switch - 16 ports - unmanaged
Enclosure type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000
Performance	Switching fabric bandwidth: 32 Gbps
Mac address table size	8K entries
Jumbo frame support	9600 bytes
Features	Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), Jumbo Frames support, Cable Diagnostics Function, D-Link Green Technology, fanless, Energy Efficient Ethernet
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status indicators	Port transmission speed, power, link/activity
Expansion connectivity
Interfaces	16 x 1000Base-T RJ-45
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, cUL, CB, ICES-003 Class A, RoHS, C-Tick Class A, VCCI Class A
Dimensions weight
Width	28 cm
Depth	18 cm
Height	4.4 cm
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	10 - 90% (non-condensing)
Min storage temperature	-10 °C
Max storage temperature	70 °C
Humidity range storage	5 - 90% (non-condensing)

Overview
Contact Us

D Link DGS 1016D 16 Port Gigabit Unmanaged Switch

D-Link · Gigabit Ethernet · Switches · Unmanaged · 16 Ethernet ports · 16 count

Save power and get an amazingly fast internet connection.
Reduces power consumption & creates less heat.
Extended product life.
Reduces operating costs.

General
Device type	Switch - 16 ports - unmanaged
Enclosure type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000
Performance	Switching fabric bandwidth: 32 Gbps
Mac address table size	8K entries
Jumbo frame support	9600 bytes
Features	Flow control, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), Jumbo Frames support, Cable Diagnostics Function, D-Link Green Technology, fanless, Energy Efficient Ethernet
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az
Status indicators	Port transmission speed, power, link/activity
Expansion connectivity
Interfaces	16 x 1000Base-T RJ-45
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, cUL, CB, ICES-003 Class A, RoHS, C-Tick Class A, VCCI Class A
Dimensions weight
Width	28 cm
Depth	18 cm
Height	4.4 cm
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	40 °C
Humidity range operating	10 - 90% (non-condensing)
Min storage temperature	-10 °C
Max storage temperature	70 °C
Humidity range storage	5 - 90% (non-condensing)
