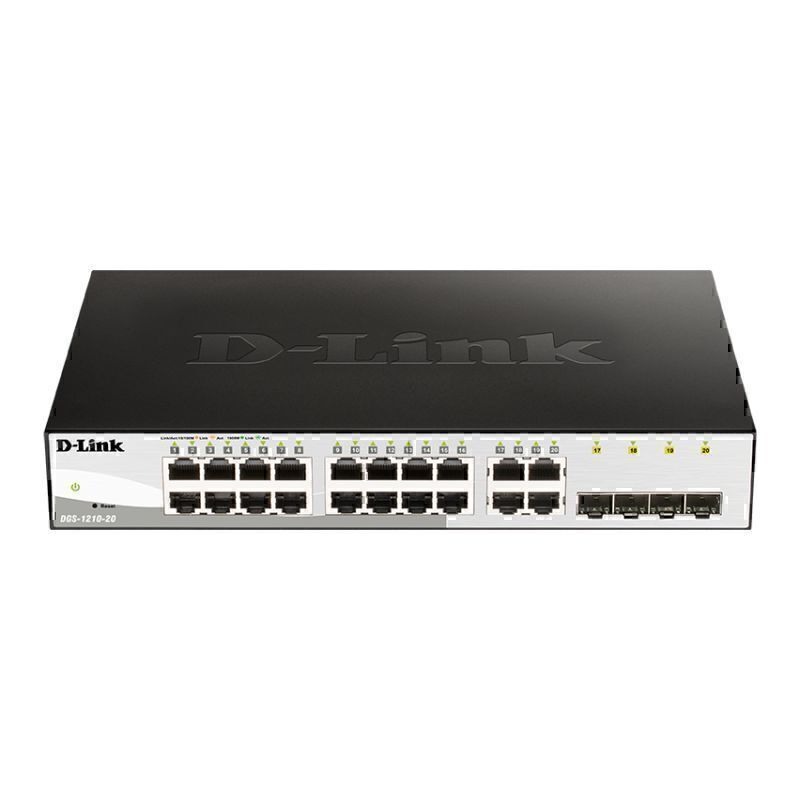

D-Link DGS-1210-20 16 Port Gigabit WebSmart Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 20 Ethernet ports · VLAN

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1210-20

Free shipping

$344.95

Qty:

D-Link DGS-1210-20 16 Port Gigabit WebSmart Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 20 Ethernet ports · VLAN

The DGS-1210-20 is a Gigabit WebSmart switch with 16 Gigabit ports and 4 SFP ports for fibre optic media. Targeting small and medium-sized businesses, the switch provides functionality, security, and manageability for a fraction of the standard cost of ownership. The DGS-1210-20 is equipped with a complete lineup of L2 features, including QoS, automatic Voice and Surveillance VLANs, IGMP Snooping, Spanning Tree and Link Aggregation. Security features include Safeguard Engine, 802.1X authentication, ACL, ARP Spoofing Prevention, DHCP Server Screening and more. Innovative D-Link Green technology and IEEE 802.3az Energy Efficient Ethernet compliance offer a range of power saving features. * Eco-friendly operation with D-Link Green Technology * IEEE 802.3az Energy Efficient Ethernet compliant * 40 Gbps Switching capacity * Web-based Management and Auto Discovery Utility * True Plug & Play * Fibre Media Support via 4 dedicated SFPs * DSCP and QoS with Auto Voice VLANs for VoIP * Advanced Security Features * IPv4 / IPv6 dual stack* * Fanless Design for Quiet Operation * Supports LACP 802.3ad (Link Aggregation Control Protocol) PACKAGE CONTENTS 1 x D-LINK DGS-1210-20 20-Port Gigabit WebSmart Switch with 16 UTP and 4 SFP Ports

Displays MAC address, IP Address, DHCP hostname
Discover via active directory authentication of the insight agent
Insight Plus will report client security
Time when device was last seen transmitting data on the network

Discovery and notification
D-Link Insight will track all the devices connected to the smart switch and list them by MAC, IP and switch port. Insight also provides alerts to notify you when more devices are found on the network. Each client device's operating system can also be fingerprinted.

Configuration management
Simple, automated configuration management creates a backup of the switch settings for easy restore. Return to the last known state or bring a device online without cumbersome configuration.

Alerts
Always know the status of your network through Insight alerting. Should one of your web smart switches go offline or reboot, you're immediately notified. No more guessing or waiting for an outage report. Configure smart list alerts to inform you when unexpected computers are discovered on the network.

Active compliance monitoring with insight plus
Windows and Mac OS clients are screened by D-Link Insight Plus, which acts as an active security sentry to validate compliance to policies on a client's operating system patch level, firewall, antivirus and anti-spyware. Reports and alerts provide you with the data you need to properly determine status and access privileges.

General
Device type	Switch - 16 ports - Managed
Enclosure type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000 + 4 x Gigabit SFP
Performance	Switching capacity: 40 Gbps Forwarding performance: 29.8 Mpps
Mac address table size	16K entries
Jumbo frame support	10000 bytes
Remote management protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features	Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Ram	128 MB
Flash memory	16 MB
Status indicators	Port transmission speed, power, link OK, link/activity
Expansion connectivity
Interfaces	16 x 1000Base-T RJ-45 4 x SFP (mini-GBIC)
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95%
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95%

Overview
Contact Us

D-Link DGS-1210-20 16 Port Gigabit WebSmart Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 20 Ethernet ports · VLAN

Displays MAC address, IP Address, DHCP hostname
Discover via active directory authentication of the insight agent
Insight Plus will report client security
Time when device was last seen transmitting data on the network

General
Device type	Switch - 16 ports - Managed
Enclosure type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	16 x 10/100/1000 + 4 x Gigabit SFP
Performance	Switching capacity: 40 Gbps Forwarding performance: 29.8 Mpps
Mac address table size	16K entries
Jumbo frame support	10000 bytes
Remote management protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features	Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
Ram	128 MB
Flash memory	16 MB
Status indicators	Port transmission speed, power, link OK, link/activity
Expansion connectivity
Interfaces	16 x 1000Base-T RJ-45 4 x SFP (mini-GBIC)
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95%
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95%

Your name *

Your email *

Subject: *

Enquiry *

Products specifications

Attribute name	Attribute value
Watts	20
Ethernet Speed	Gigabit Ethernet
Warranty	Limited Lifetime
Switching Capacity	40 Gbps
D	Link 20
