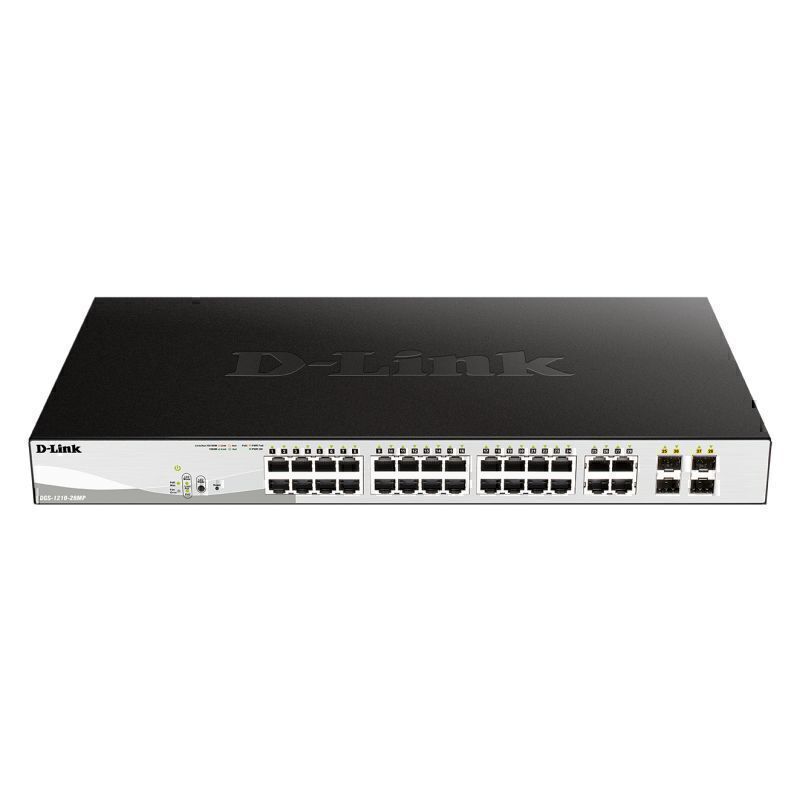

D-Link DGS-1210-28P 28-Port Gigabit WebSmart PoE Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 24 Ethernet ports · VLAN · 24 count

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1210-28MP

Free shipping

$1,577.95

Qty:

D-Link DGS-1210-28P 28-Port Gigabit WebSmart PoE Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 24 Ethernet ports · VLAN · 24 count

The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and mediumsized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership. The new DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.

24 Port 10/100 Base-T PoE Switch with 2 x 10/100/1000 Base-T/SFP Combo Ports
Support IEEE 802.3af, IEEE 802.1p QOS, COS and 802.3at PoE Standard
Support Auto Surveillance VLAN (ASV), Auto Voice VLAN, and Smart IP-MAC-Port Binding
Broadcast, Unicast and Multicast Storm Control
802.1x port-base Authentication through RADIUS servers

Discovery and notification
D-Link Insight will track all the devices connected to the smart switch and list them by MAC, IP and switch port. Insight also provides alerts to notify you when more devices are found on the network. Each client device's operating system can also be fingerprinted.

Configuration management
Simple, automated configuration management creates a backup of the switch settings for easy restore. Return to the last known state or bring a device online without cumbersome configuration.

Alerts
Always know the status of your network through Insight alerting. Should one of your web smart switches go offline or reboot, you're immediately notified. No more guessing or waiting for an outage report. Configure smart list alerts to inform you when unexpected computers are discovered on the network.

Active compliance monitoring with insight plus
Windows and Mac OS clients are screened by D-Link Insight Plus, which acts as an active security sentry to validate compliance to policies on a client's operating system patch level, firewall, antivirus and anti-spyware. Reports and alerts provide you with the data you need to properly determine status and access privileges.

General
Device type	Switch - 24 ports - Managed
Enclosure type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE) + 4 x Gigabit SFP
Power over ethernet po e	PoE
Performance	Switching capacity: 56 Gbps Forwarding performance: 41.7 Mpps
Mac address table size	16K entries
Jumbo frame support	10000 bytes
Remote management protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features	Flow control, full duplex capability, Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
Ram	128 MB
Flash memory	16 MB
Status indicators	Port transmission speed, power, link OK, link/activity
Expansion connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE 4 x SFP (mini-GBIC)
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95%
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95%

Overview
Contact Us

D-Link DGS-1210-28P 28-Port Gigabit WebSmart PoE Switch

D-Link · PoE · Gigabit Ethernet · Switches · Managed · 24 Ethernet ports · VLAN · 24 count

24 Port 10/100 Base-T PoE Switch with 2 x 10/100/1000 Base-T/SFP Combo Ports
Support IEEE 802.3af, IEEE 802.1p QOS, COS and 802.3at PoE Standard
Support Auto Surveillance VLAN (ASV), Auto Voice VLAN, and Smart IP-MAC-Port Binding
Broadcast, Unicast and Multicast Storm Control
802.1x port-base Authentication through RADIUS servers

General
Device type	Switch - 24 ports - Managed
Enclosure type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE) + 4 x Gigabit SFP
Power over ethernet po e	PoE
Performance	Switching capacity: 56 Gbps Forwarding performance: 41.7 Mpps
Mac address table size	16K entries
Jumbo frame support	10000 bytes
Remote management protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Features	Flow control, full duplex capability, Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Safeguard Engine, D-Link Green Technology
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at
Ram	128 MB
Flash memory	16 MB
Status indicators	Port transmission speed, power, link OK, link/activity
Expansion connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE 4 x SFP (mini-GBIC)
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standards	FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95%
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95%
