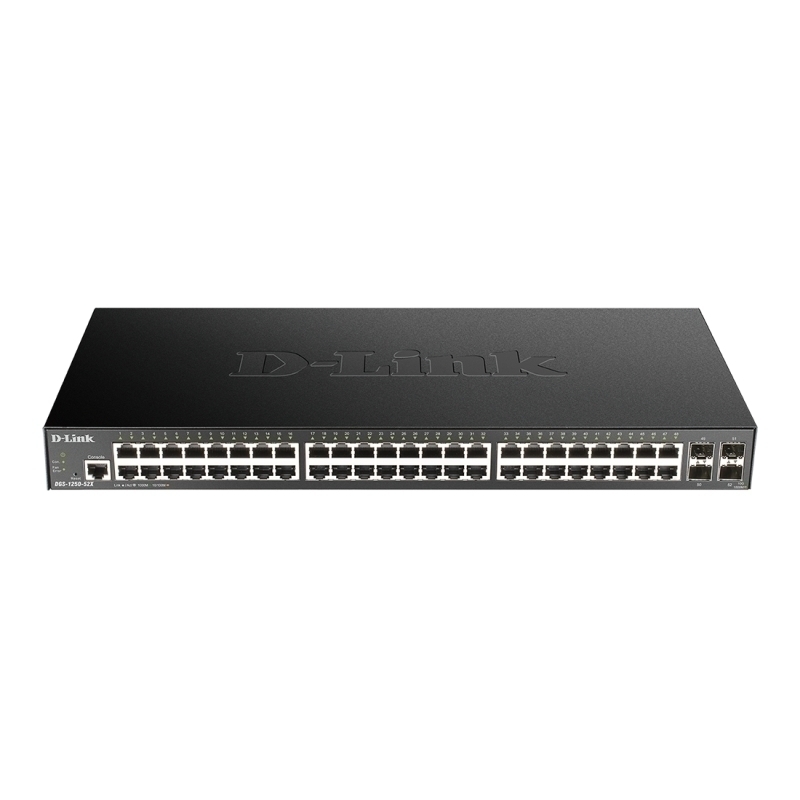

D-Link DGS-1250-52X - 52-Port Gigabit Smart Managed Switch with 48 RJ45 and 4 SFP+ 10g Ports

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-1250-52X

Free shipping

$1,181.05

Qty:

D-Link DGS-1250-52X - 52-Port Gigabit Smart Managed Switch with 48 RJ45 and 4 SFP+ 10g Ports

Gigabit Ethernet · VLAN · Switches · Managed

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features. The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers enabling real network horsepower.

Features 52 networking ports to establish large network
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 52 ports - L3 Lite - smart - stackable
Enclosure type	Rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	48 x 10/100/1000 + 4 x 10 Gigabit SFP+
Performance	Switching capacity: 176 Gbps Forwarding performance: 130.95 Mpps
Mac address table size	32K entries
Jumbo frame support	12KB
Routing protocol	IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, SSH-2, CLI
Encryption algorithm	SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication method	RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), reset button, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Multicast filtering function, TFTP client, Ethernet Ring Protection Switching (ERPS), cable test, system log, IP source guard, Deficit Round Robin (DRR), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), Web-based Access Control (WAC), LLDP-MED, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection
Compliant standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3az
Processor	: 1 GHz
Ram	2 GB DDR3 SDRAM
Flash memory	64 MB
Status indicators	Error, fan, link/activity/speed, stack
Expansion connectivity
Interfaces	48 x 1000Base-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 management
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	51.2 Watt
Miscellaneous
Mtbf	589,984.72 hours
Compliant standards	VCCI, C-Tick, BSMI, cUL, CB, FCC
Dimensions weight
Width	44 cm
Depth	21 cm
Height	4.4 cm
Weight	3.01 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
