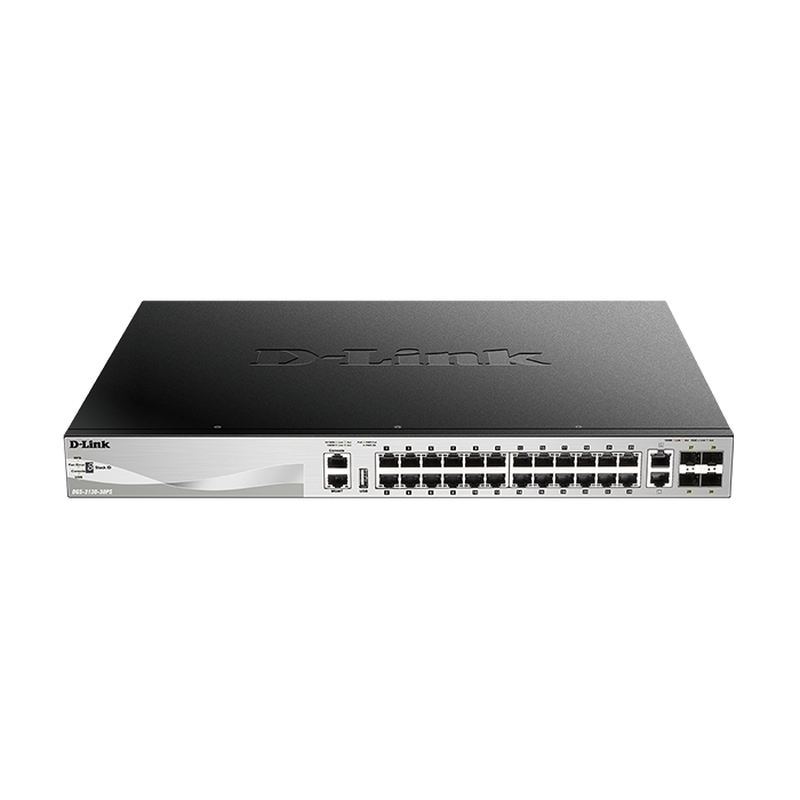

D-Link DGS-3130-30PS 30 Port Stackable Gigabit PoE+ Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DGS-3130-30PS

Free shipping

$2,417.79

Qty:

D-Link DGS-3130-30PS 30 Port Stackable Gigabit PoE+ Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

The DGS-3130 Series switches are Lite Layer 3 Stackable Managed Switches designed to offer fast and secure connectivity on enterprise or metro Ethernet access network. These switches support high speed stacking, multicast management and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3130 Series switches offer six 10Gb ports: 2 copper and 4 SFP+, which can be used for stacking and as high bandwidth uplinks. In addition each copper port in DGS-3130 Series switches has 6 kV surge protection buit-in for higher network reliability.

Features 26 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Stack port provides an easy and hassle-free way to extend your office network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Features 26 networking ports to establish large network
Cascade to other network devices through the uplink port to expand your local area network
Stack port provides an easy and hassle-free way to extend your office network
Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
Can work as layer 3 routing for scalable network design
Management capability provides control over setup and configuration of your network
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 30 ports - L3 Lite - Managed - stackable
Enclosure type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
Power over ethernet po e	PoE+
Po e budget	370 W
Performance	Switching capacity: 168 Gbps Forwarding performance (64-byte packet size): 125 Mpps
Capacity	Packet buffer size: 2 MB Units per virtual stack: up to 32 IGMP groups: 1024 Virtual interfaces (VLANs): 4000 QoS hardware queues: 8
Mac address table size	16384 entries
Jumbo frame support	9KB
Max units in a stack	12
Routing protocol	RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MSTP, RSTP, STP
Remote management protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI, NTP
Encryption algorithm	SSL, SSL 3.0, SSL 2.0
Authentication method	RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, BOOTP support, ARP support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, FTP server, MLD snooping, Cable Diagnostics Function, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, TFTP client, Single IP Management (SIM), Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), 3 fans, Storm Control, system log, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 6KV Surge protection, Link Aggregation, Management Information Base (MIB) II, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, Private VLAN, Ethernet OAM, proxy ARP, Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing, Dying Gasp, VLAN trunking, Root Restriction, Asymmetric VLAN, security slot (Kensington security lock compatible), Committed Information Rate (CIR)
Compliant standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, ITU-T G.8032
Expansion connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 PoE+ 2 x 10GBase-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 1 x management (Gigabit LAN) RJ-45 1 x USB 2.0 Type A
Power
Power device	Internal power supply - hot-plug
Power redundancy	Optional
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	471.67 Watt
Miscellaneous
Mtbf	409,054 hours
Compliant standards	FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Dimensions weight
Width	44 cm
Depth	35 cm
Height	4.4 cm
Weight	4.66 kg
Manufacturer warranty
Service support	Limited warranty - replacement - lifetime - response time: next business day
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	10 - 90%
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	90%
