D-Link DGS-3130-30TS 30 Port Stackable Gigabit Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DGS-3130-30TS

Free shipping

$1,814.95

Qty:

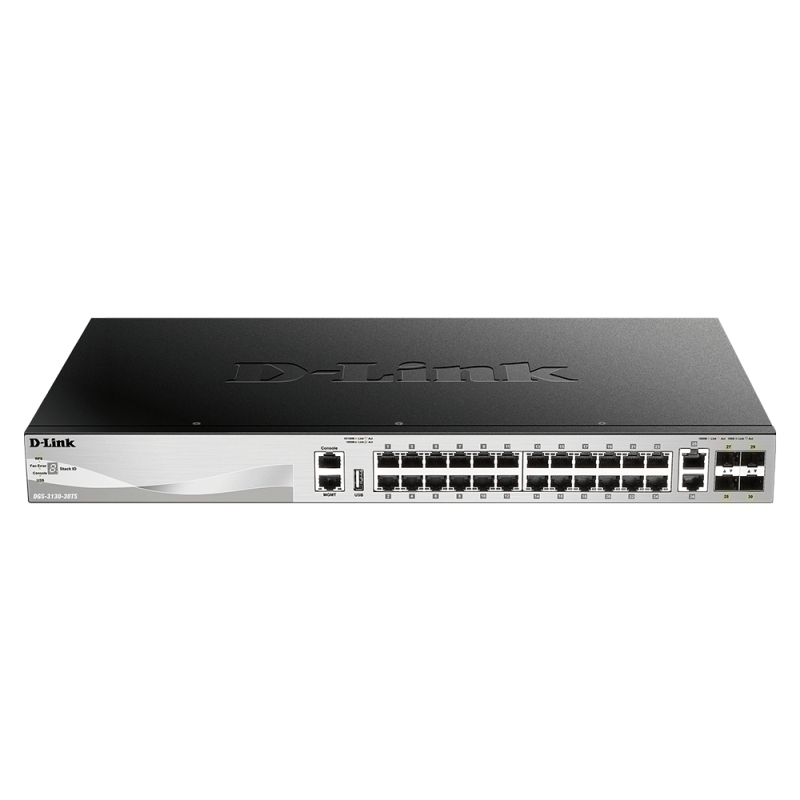

D-Link DGS-3130-30TS 30 Port Stackable Gigabit Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

The DGS-3130 Series is a highly versatile Lite Layer 3 stackable switch. Including powerful L2 & L3 features, as well as support for multiple software images, it is highly pliant, capable of accommodating different network deployments.With network bottlenecks on the rise, the DGS-3130 Series's six 10 Gigabit uplink ports are an ideal solution. Business can flexibly increase their bandwidth with flexibility to incrementally meet growing bandwidth demands.

Features 26 networking ports to meet the requirements of the most demanding workgroups
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Features 26 networking ports to meet the requirements of the most demanding workgroups
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Managed switch provides a reliable foundation for your network
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 30 ports - L3 Lite - Managed - stackable
Enclosure type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
Performance	Switching capacity: 168 Gbps Forwarding performance (64-byte packet size): 125 Mpps
Capacity	Packet buffer size: 2 MB Units per virtual stack: up to 32 IGMP groups: 1024 Virtual interfaces (VLANs): 4000 QoS hardware queues: 8
Mac address table size	16384 entries
Jumbo frame support	9KB
Max units in a stack	12
Routing protocol	RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MSTP, RSTP, STP
Remote management protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI, NTP
Encryption algorithm	SSL, SSL 3.0, SSL 2.0
Authentication method	RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, BOOTP support, ARP support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, FTP server, MLD snooping, Cable Diagnostics Function, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, TFTP client, Single IP Management (SIM), Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), Storm Control, system log, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 6KV Surge protection, Link Aggregation, Management Information Base (MIB) II, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, 1 fan, Private VLAN, Ethernet OAM, proxy ARP, Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing, Dying Gasp, VLAN trunking, Root Restriction, Asymmetric VLAN, security slot (Kensington security lock compatible), Committed Information Rate (CIR)
Compliant standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T G.8032
Expansion connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 2 x 10GBase-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 1 x management (Gigabit LAN) RJ-45 1 x USB 2.0 Type A
Power
Power device	Internal power supply - hot-plug
Power redundancy	Optional
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	30.76 Watt
Miscellaneous
Mtbf	900,546 hours
Compliant standards	FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Dimensions weight
Width	44 cm
Depth	25 cm
Height	4.4 cm
Weight	2.98 kg
Manufacturer warranty
Service support	Limited warranty - replacement - lifetime - response time: next business day
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	10 - 90%
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	90%

Overview
Contact Us

D-Link DGS-3130-30TS 30 Port Stackable Gigabit Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed · Layer 3

Features 26 networking ports to meet the requirements of the most demanding workgroups
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Features 26 networking ports to meet the requirements of the most demanding workgroups
Stack port provides an easy and hassle-free way to extend your office network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Can work as layer 3 routing for scalable network design
Managed switch provides a reliable foundation for your network
Built-in power supply to ensure all components are being supplied with accurate voltage

General
Device type	Switch - 30 ports - L3 Lite - Managed - stackable
Enclosure type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
Performance	Switching capacity: 168 Gbps Forwarding performance (64-byte packet size): 125 Mpps
Capacity	Packet buffer size: 2 MB Units per virtual stack: up to 32 IGMP groups: 1024 Virtual interfaces (VLANs): 4000 QoS hardware queues: 8
Mac address table size	16384 entries
Jumbo frame support	9KB
Max units in a stack	12
Routing protocol	RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, MSTP, RSTP, STP
Remote management protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI, NTP
Encryption algorithm	SSL, SSL 3.0, SSL 2.0
Authentication method	RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features	Flow control, BOOTP support, ARP support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, FTP server, MLD snooping, Cable Diagnostics Function, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), DHCP client, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), tagged VLAN, TFTP client, Single IP Management (SIM), Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), Storm Control, system log, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), 6KV Surge protection, Link Aggregation, Management Information Base (MIB) II, VLAN Double Tagging (Q-in-Q), Web-based Access Control (WAC), DNS client, 1 fan, Private VLAN, Ethernet OAM, proxy ARP, Energy-Efficient Ethernet (EEE), BPDU Filter, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, ARP spoofing, Dying Gasp, VLAN trunking, Root Restriction, Asymmetric VLAN, security slot (Kensington security lock compatible), Committed Information Rate (CIR)
Compliant standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T G.8032
Expansion connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 2 x 10GBase-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 1 x management (Gigabit LAN) RJ-45 1 x USB 2.0 Type A
Power
Power device	Internal power supply - hot-plug
Power redundancy	Optional
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	30.76 Watt
Miscellaneous
Mtbf	900,546 hours
Compliant standards	FCC Class A certified, BSMI, cUL, CB, CCC, IC, VCCI Class A, RCM
Dimensions weight
Width	44 cm
Depth	25 cm
Height	4.4 cm
Weight	2.98 kg
Manufacturer warranty
Service support	Limited warranty - replacement - lifetime - response time: next business day
Environmental parameters
Min operating temperature	0 °C
Max operating temperature	50 °C
Humidity range operating	10 - 90%
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	90%
