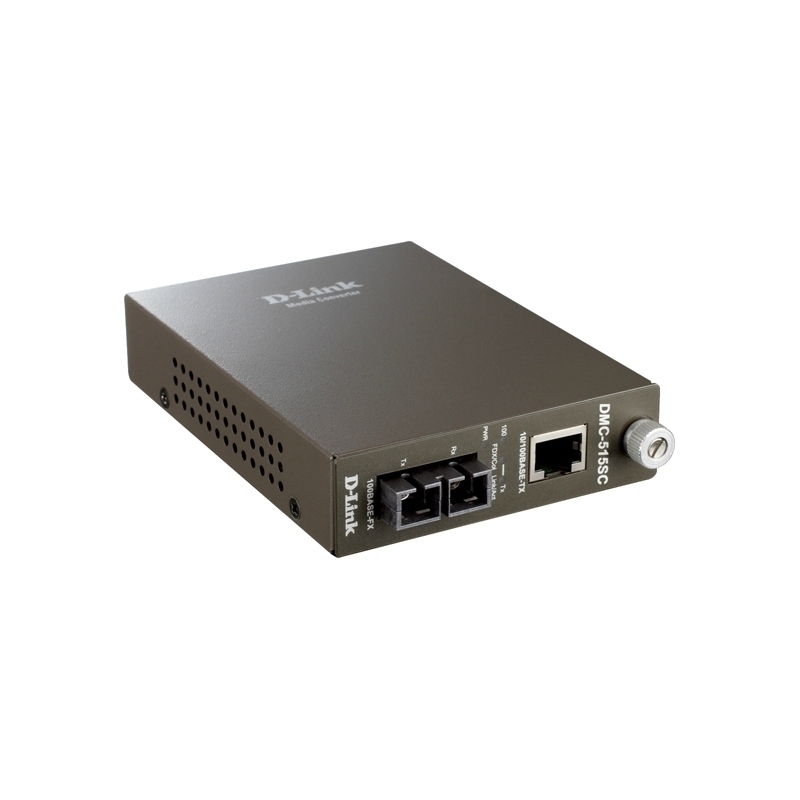

D-Link DMC-515SC Media Converter

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DMC-515SC

Free shipping

$231.40

Qty:

D-Link DMC-515SC Media Converter

These converters convert 10/100Mbps 10BASE-T/ 100BASE-TX Fast Ethernet twisted-pair signals to 100BASE-FX Fast Ethernet fiber signals. The media converters come with their own solid metal case housing, LED status indicators and AC to DC power adapters. They can be used as stand-alone converters, or installed in a DMC-1000 chassis. In case you install them in the chassis, you will remove their metal cases and slide in their PC boards into the chassis slots. The chassis's power supply will be used instead of the media converters' own AC to DC power adapters. All media converters are hot-swappable when used with the chassis.

Auto negotiation of speeds and duplex modes on twisted-pair port
Store-and-forward mechanism
Back-pressure & IEEE 802.3x Flow Control compliant
Front panel status LEDs

General
Device type	Fibre media converter
Form factor	External
Built in devices	Led panel
Networking
Connectivity technology	Wired
Cabling type	10Base-T, 100Base-FX, 100Base-TX
Data link protocol	10Mb LAN, 100Mb LAN
Data transfer rate	100 Mbps
Max transfer distance	15 km
Status indicators	Port status
Features	Flow control, full duplex capability, MDI/MDI-X switch, auto-negotiation
Compliant standards	IEEE 802.3x
Expansion connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX - RJ-45 female - 1 1 x Ethernet 100Base-FX - SC single-mode female - 2
Miscellaneous
Compliant standards	FCC Class B certified
Compatibility information
Designed for	D-Link DMC 1000

Overview
Contact Us

D-Link DMC-515SC Media Converter

Auto negotiation of speeds and duplex modes on twisted-pair port
Store-and-forward mechanism
Back-pressure & IEEE 802.3x Flow Control compliant
Front panel status LEDs

General
Device type	Fibre media converter
Form factor	External
Built in devices	Led panel
Networking
Connectivity technology	Wired
Cabling type	10Base-T, 100Base-FX, 100Base-TX
Data link protocol	10Mb LAN, 100Mb LAN
Data transfer rate	100 Mbps
Max transfer distance	15 km
Status indicators	Port status
Features	Flow control, full duplex capability, MDI/MDI-X switch, auto-negotiation
Compliant standards	IEEE 802.3x
Expansion connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX - RJ-45 female - 1 1 x Ethernet 100Base-FX - SC single-mode female - 2
Miscellaneous
Compliant standards	FCC Class B certified
Compatibility information
Designed for	D-Link DMC 1000
