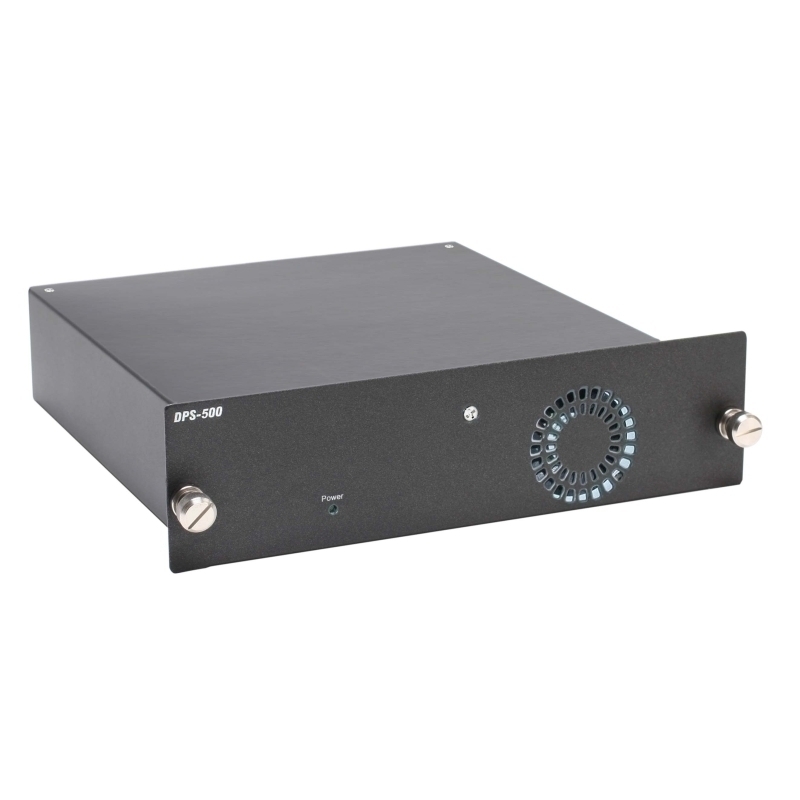

D-Link DPS-500A 140W Redundant Power Supply
The DPS-500A redundant power supply (RPS) are designed to conform to the wattage requirements of D-Link's Ethernet and Gigabit switches. It is an external RPS unit enclosed in solid metal cases with sockets to connect to an AC power sources on one end and to connect to a switch's internal power supply on the other end. It provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports or an entire network. Redundant Power Backup Each D-Link RPS is equipped with an integrated detection circuit that continuously monitors the switch's internal power supply. In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service. This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply. Easy and Flexible Deployment Deployment of a DPS series device does not require any change in the configuration of the LAN switch. Each RPS is equipped with a universal internal power supply and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable. Modular Redundant Power Supplies The DPS-500A is a modular redundant power supply which can be installed as independent power supply units or placed inside a DPS-800 Rack-mount chassis. The chassis are designed for mounting in a standard 19-inch equipment rack. Multiple power supplies can be placed inside a chassis, from which they can connect to the switches mounted in the same rack. Rack-Mount Chassis The DPS-800 chassis can accommodate up to two DPS-200A modules to an equipment rack.
- 264 V- Ac Input Frequency: 47.
- 63 HzOperational Conditions:- Operating Temperature (T-T): 0.
- 50 °C- Storage Temperature (T-T): -45.
- 85 °C- Operating Relative Humidity (H-H): 10.
- 90%- Storage Relative Humidity (H-H): 10.
- 264 V- Ac Input Frequency: 47.
- 63 HzOperational Conditions:- Operating Temperature (T-T): 0.
- 50 °C- Storage Temperature (T-T): -45.
- 85 °C- Operating Relative Humidity (H-H): 10.
- 90%- Storage Relative Humidity (H-H): 10.
- 95%Weight & Dimensions:- Width: 172 Mm- Depth: 257 Mm- Height: 43 Mm- Weight: 1.
| Features |
| Mean time between failures mtbf | 400000 h |
| Colour of product | Black |
| Product type | Power supply |
| Power |
| Ac input frequency | 47 - 63 Hz |
| Ac input voltage | 90 - 264 V |
| Total power | 140 W |
| Operational conditions |
| Storage relative humidity h h | 10 - 95% |
| Operating relative humidity h h | 10 - 90% |
| Storage temperature t t | -45 - 85 °C |
| Operating temperature t t | 0 - 50 °C |
| Weight dimensions |
| Weight | 1.51 kg |
| Height | 43 mm |
| Depth | 257 mm |
| Width | 172 mm |
| Technical details |
| Package depth | 436 mm |
| Package width | 246 mm |
| Package height | 109 mm |
| Package weight | 2.8 kg |
| Shipping inner case length | 46.7 cm |
| Shipping inner case width | 45.7 cm |
| Shipping inner case height | 28.4 cm |
| Shipping inner case net weight | 11 kg |
| Quantity per shipping inner case | 4 pc(s) |
| Pallet gross weight air | 211 kg |
| Number of cartons per pallet air | 16 pc(s) |
| Quantity per pallet air | 64 pc(s) |
| Pallet length | 120 cm |
| Pallet width | 110 cm |
| Pallet height air | 127.1 cm |
| Pallet gross weight sea | 306.5 kg |
| Number of cartons per pallet sea | 24 pc(s) |
| Quantity per pallet sea | 96 pc(s) |
| Pallet height sea | 183.9 cm |
| Shipping inner case weight | 12 kg |
