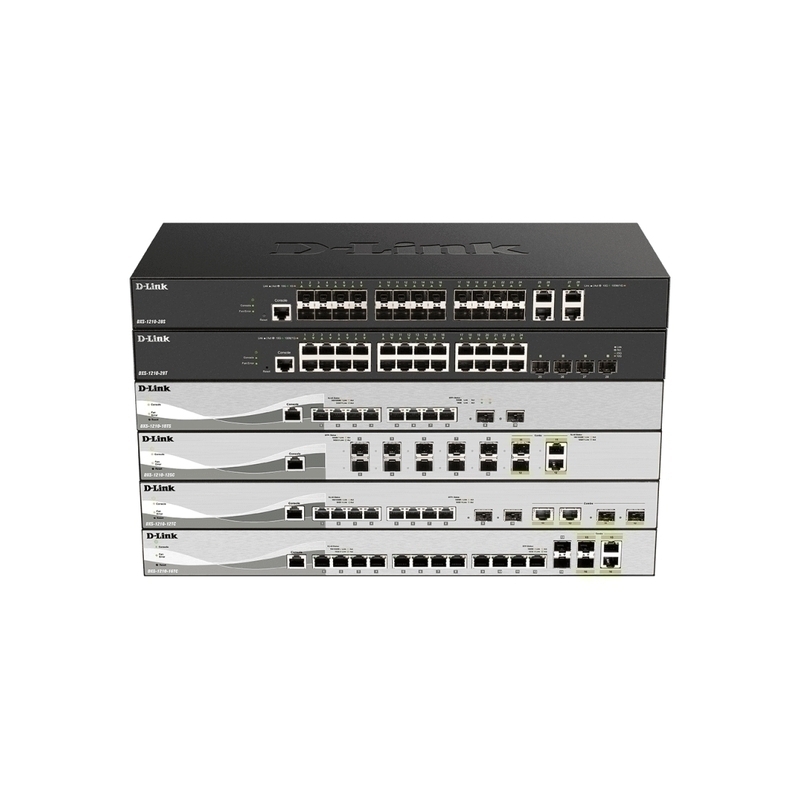

D-Link DXS-1210-10TS 10 Port Gigabit WebSmart Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DXS-1210-10TS

Free shipping

$2,234.95

Qty:

D-Link DXS-1210-10TS 10 Port Gigabit WebSmart Switch

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Supporting 10GBASE-T/SFP+ combo ports they provide connection flexibility across a network allowing easier network integration. At lower temperatures the fans will run slower reducing the switch’s power consumption and noise.

240 AC input frequency 50
95 Storage relative humidity (H-H) 0
95 Storage temperature (T-T) -40
70 Operating temperature (T-T) -5

General
Device type	Switch - 8 ports - Managed
Enclosure type	Rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	8 x 10GBase-T + 2 x 10 Gigabit SFP+
Capacity	IGMP groups: 1000 Virtual interfaces (VLANs): 4000 ARP entries: 128 IPv4 routes (static): 32 IPv6 routes (static): 32 ACL rules: 512 ACL: 512
Mac address table size	16000 entries
Jumbo frame support	9000 bytes
Routing protocol	IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote management protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI
Encryption algorithm	SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication method	RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Features	Flow control, MDI/MDI-X switch, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, D-Link Green Technology, LLDP support, DHCP relay, Port Security, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), Loopback, Type of Service (ToS), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IP source guard, Deficit Round Robin (DRR)
Compliant standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Status indicators	Port transmission speed, power, link/activity, fan
Expansion connectivity
Interfaces	8 x 10GBase-T RJ-45 2 x SFP+
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50 - 60 Hz)
Power consumption operational	68.67 Watt
Miscellaneous
Compliant standards	VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC, TLS
Dimensions weight
Width	44 cm
Depth	21 cm
Height	4.4 cm
Weight	3.1 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-40 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
