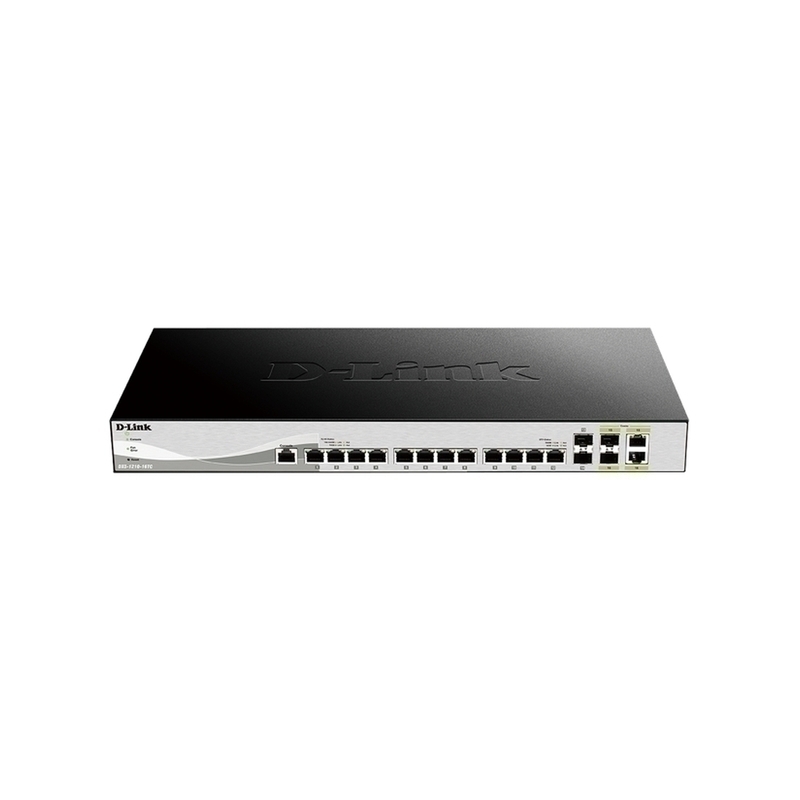

D-Link DXS-1210-16TC]16-Port 10 Gigabit Smart Managed Switch

Gigabit Ethernet · VLAN · Switches · Managed
Manufacturer: D-Link
Availability: Out of stock
Manufacturer part number: DXS-1210-16TC
Free shipping

Usually shipped same business day if ordered before 2pm or next business day.

$3,570.75

D-Link DXS-1210-16TC]16-Port 10 Gigabit Smart Managed Switch

Gigabit Ethernet · VLAN · Switches · Managed

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. Energy Efficient By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built- in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilising different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 Series takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy. Extensive Management and Layer 2 Features The DXS-1210 Series comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops.

  • Energy efficient
  • Extensive management and Layer 2 features
  • Quality of service and bandwidth control
  • Secure your network

General
Device typeSwitch - 16 ports - smart
Enclosure typeRack-mountable
Subtype10 Gigabit Ethernet
Ports12 x 10GBase-T + 2 x SFP+ + 2 x combo 10 Gigabit SFP+
PerformanceSwitching capacity: 320 Gbps Forwarding performance: 238.08 Mpps
CapacityACL: 50 ACL rules: 256 Static ARP entries: 768 IPv4 routes (static): 64 IPv6 routes (static): 64 IGMP groups: 384 QoS hardware queues per port: 8
Mac address table size16K entries
Jumbo frame support9KB
Routing protocolStatic IPv4 routing, static IPv6 routing
Remote management protocolSNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption algorithmSSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication methodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
FeaturesFlow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control
Compliant standardsIEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Status indicatorsPower, fan, link/activity/speed
Expansion connectivity
Interfaces12 x 10GBase-T RJ-45 2 x SFP+ 2 x 10GBase-T SFP+
Power
Power deviceInternal power supply
Voltage requiredAC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standardsVCCI, C-Tick, BSMI, cUL, CB, CCC, FCC
Dimensions weight
Width44 cm
Depth21 cm
Height4.4 cm
Weight3.15 kg
Environmental parameters
Min operating temperature-5 °C
Max operating temperature50 °C
Humidity range operating0 - 95% (non-condensing)
Min storage temperature-40 °C
Max storage temperature70 °C
Humidity range storage0 - 95% (non-condensing)

D-Link DXS-1210-16TC]16-Port 10 Gigabit Smart Managed Switch

Gigabit Ethernet · VLAN · Switches · Managed

The D-Link DXS-1210 Series 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. Energy Efficient By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built- in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilising different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switch's power consumption and noise. Link status drastically reduces power consumption by automatically putting ports without a link into a sleep mode. The DXS-1210 Series takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy. Extensive Management and Layer 2 Features The DXS-1210 Series comes with a complete line-up of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops.

  • Energy efficient
  • Extensive management and Layer 2 features
  • Quality of service and bandwidth control
  • Secure your network

General
Device typeSwitch - 16 ports - smart
Enclosure typeRack-mountable
Subtype10 Gigabit Ethernet
Ports12 x 10GBase-T + 2 x SFP+ + 2 x combo 10 Gigabit SFP+
PerformanceSwitching capacity: 320 Gbps Forwarding performance: 238.08 Mpps
CapacityACL: 50 ACL rules: 256 Static ARP entries: 768 IPv4 routes (static): 64 IPv6 routes (static): 64 IGMP groups: 384 QoS hardware queues per port: 8
Mac address table size16K entries
Jumbo frame support9KB
Routing protocolStatic IPv4 routing, static IPv6 routing
Remote management protocolSNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption algorithmSSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication methodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
FeaturesFlow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control
Compliant standardsIEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Status indicatorsPower, fan, link/activity/speed
Expansion connectivity
Interfaces12 x 10GBase-T RJ-45 2 x SFP+ 2 x 10GBase-T SFP+
Power
Power deviceInternal power supply
Voltage requiredAC 120/230 V (50/60 Hz)
Miscellaneous
Compliant standardsVCCI, C-Tick, BSMI, cUL, CB, CCC, FCC
Dimensions weight
Width44 cm
Depth21 cm
Height4.4 cm
Weight3.15 kg
Environmental parameters
Min operating temperature-5 °C
Max operating temperature50 °C
Humidity range operating0 - 95% (non-condensing)
Min storage temperature-40 °C
Max storage temperature70 °C
Humidity range storage0 - 95% (non-condensing)
*
*
*
*
