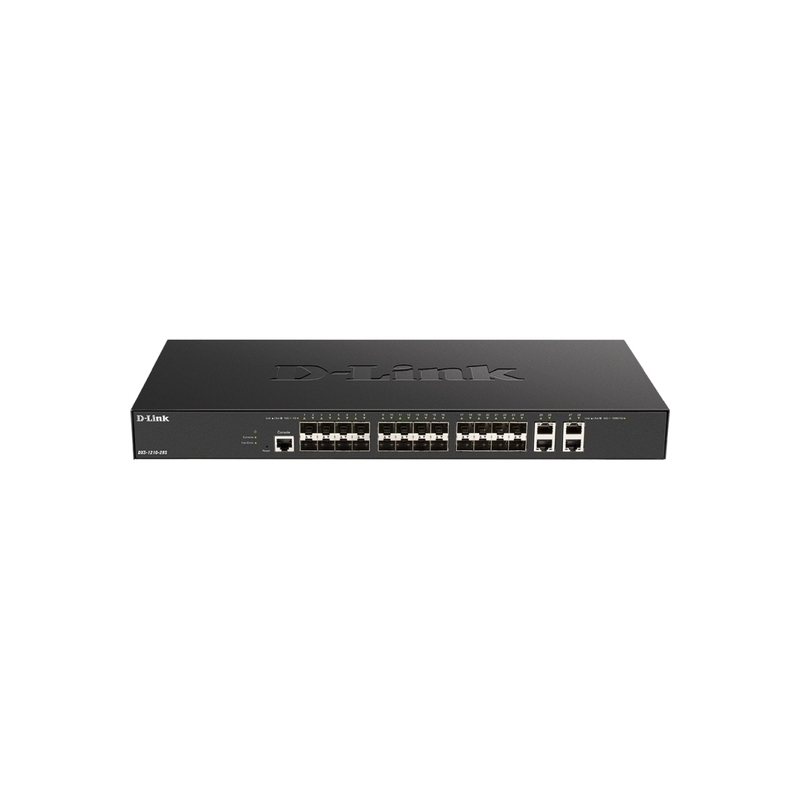

D-Link Dxs-1210-28s Switch 24 Ports

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DXS-1210-28S

Free shipping

$3,451.09

Qty:

D-Link Dxs-1210-28s Switch 24 Ports

Gigabit Ethernet · PoE · VLAN · Switches · Managed

The D-Link DXS-1210-28S 10 Gigabit Ethernet smart managed switch is a cost-effective capable for a range of network needs in any business environment. Supporting a combination of 10GBase-T and SFP ports, this switch provides connection flexibility across a network allowing for easier network integration. With high performance and low latency, the DXS-1210-28S fulfills the needs for virtualization, cloud services, and server-to-server applications.

240 V Power consumption (max): 85.7 W Power over Ethernet (PoE): N Operating temperature (T-T): -5.
50 °C Storage temperature (T-T): -20.
70 °C Operating relative humidity (H-H): 0.
95% Storage relative humidity (H-H): 0.
95% Width: 441 mm Depth: 209.

General
Device type	Switch - 28 ports - smart
Enclosure type	Rack-mountable
Subtype	10 Gigabit Ethernet
Ports	24 x 10GBase-X + 4 x 10Gb Ethernet
Performance	Switching capacity: 560 Gbps Forwarding performance: 416,64 Mpps
Capacity	VLAN IDs: 4094 IPv4 routes (static): 128 IPv6 routes (static): 64 Static ARP entries: 384
Mac address table size	32000 entries
Jumbo frame support	12288 bytes
Routing protocol	Static IPv4 routing, static IPv6 routing
Remote management protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption algorithm	TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2
Authentication method	RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, 4MB packet buffer, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control, Smart Fans
Compliant standards	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Processor	X ARM Cortex-A9 + Cortex-R5
Ram	256 MB
Flash memory	64 MB
Status indicators	Power, fan, link/activity/speed
Expansion connectivity
Interfaces	24 x 10GBase-X SFP+ 4 x 10GBase-T RJ-45 1 x console RJ-45
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	87.7 Watt
Power consumption stand by	27.6 Watt
Miscellaneous
Included accessories	4 rubber feet, 2 x 19" mounting brackets
Cables included	1 x console cable
Rack mounting kit	Included
Mtbf	574 720 hours
Compliant standards	FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A
Dimensions weight
Width	44.1 cm
Depth	20.95 cm
Height	4.4 cm
Weight	3.27 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
