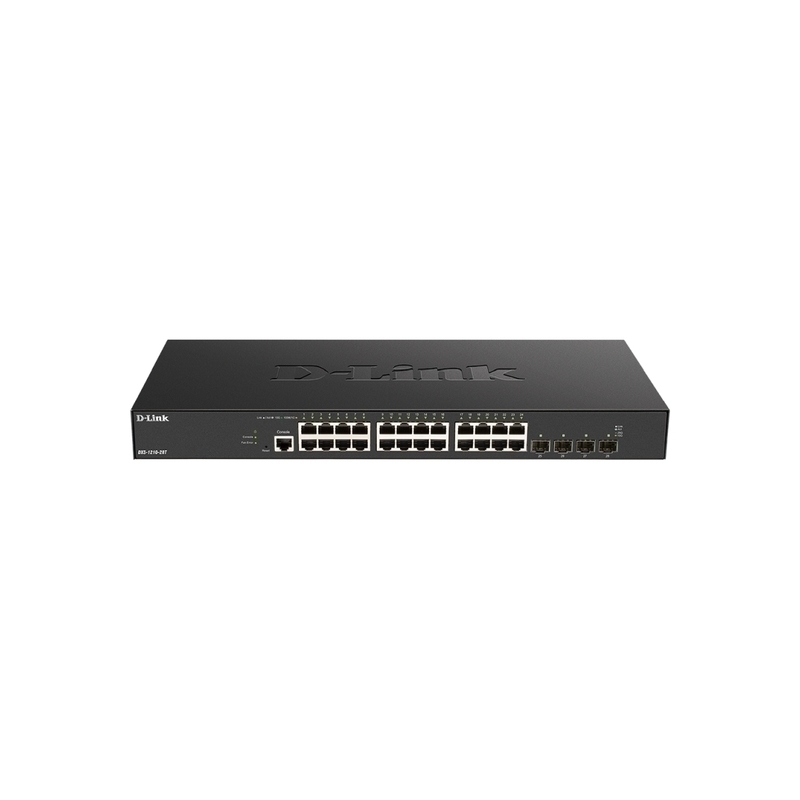

D-Link Dxs-1210-28t Switch 24 Ports

Gigabit Ethernet · PoE · VLAN · Switches · Managed

Manufacturer: D-Link

Availability: In stock

Manufacturer part number: DXS-1210-28T

Free shipping

$4,319.77

Qty:

D-Link Dxs-1210-28t Switch 24 Ports

Gigabit Ethernet · PoE · VLAN · Switches · Managed

The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as either an aggregation/access switch in large enterprise environments or deployed at the core of an SMB network. With high performance and low latency, these 10G smart-managed switches fulfil the needs of virtualisation, cloud services, and server-to-server applications. The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time, inter-VLAN static routing helps by reducing the pressure of routers and backbone networks, improving overall network efficiency. The free D-Link Network Assistant utility allows multiple D-Link devices within the same L2 network to be discovered and managed. These switches also provide management through the multi-lingual web UI, a full command-line interface (CLI) through Telnet, a console port, as well as D-View 7 Network Management System.

240 V Power consumption (max): 87.3 W Power over Ethernet (PoE): N Operating temperature (T-T): -5.
50 °C Storage temperature (T-T): -20.
70 °C Operating relative humidity (H-H): 0.
95% Storage relative humidity (H-H): 0.
95% Width: 441 mm Depth: 209.

General
Device type	Switch - 28 ports - smart
Enclosure type	Rack-mountable
Subtype	10 Gigabit Ethernet
Ports	24 x 10GBase-T + 4 x 25 Gigabit SFP28
Performance	Switching capacity: 680 Mbps Forwarding performance: 505.92 Mpps
Capacity	VLAN IDs: 4094 IPv4 routes (static): 128 IPv6 routes (static): 64 Static ARP entries: 384
Mac address table size	32000 entries
Jumbo frame support	12288 bytes
Routing protocol	Static IPv4 routing, static IPv6 routing
Remote management protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption algorithm	TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2
Authentication method	RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, 4MB packet buffer, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control, Smart Fans
Compliant standards	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Processor	X ARM Cortex-A9 + Cortex-R5
Ram	256 MB
Flash memory	64 MB
Status indicators	Power, fan, link/activity/speed
Expansion connectivity
Interfaces	24 x 10GBase-T RJ-45 4 x 25GBase-X SFP28 1 x console RJ-45
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	90 Watt
Power consumption stand by	33 Watt
Miscellaneous
Included accessories	4 rubber feet, 2 x 19" mounting brackets
Cables included	1 x console cable
Rack mounting kit	Included
Mtbf	572 820 hours
Compliant standards	FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A
Dimensions weight
Width	44.1 cm
Depth	20.95 cm
Height	4.4 cm
Weight	3.07 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)

Overview
Contact Us

D-Link Dxs-1210-28t Switch 24 Ports

Gigabit Ethernet · PoE · VLAN · Switches · Managed

240 V Power consumption (max): 87.3 W Power over Ethernet (PoE): N Operating temperature (T-T): -5.
50 °C Storage temperature (T-T): -20.
70 °C Operating relative humidity (H-H): 0.
95% Storage relative humidity (H-H): 0.
95% Width: 441 mm Depth: 209.

General
Device type	Switch - 28 ports - smart
Enclosure type	Rack-mountable
Subtype	10 Gigabit Ethernet
Ports	24 x 10GBase-T + 4 x 25 Gigabit SFP28
Performance	Switching capacity: 680 Mbps Forwarding performance: 505.92 Mpps
Capacity	VLAN IDs: 4094 IPv4 routes (static): 128 IPv6 routes (static): 64 Static ARP entries: 384
Mac address table size	32000 entries
Jumbo frame support	12288 bytes
Routing protocol	Static IPv4 routing, static IPv6 routing
Remote management protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption algorithm	TLS 1.0, PEAP, TTLS, TLS 1.1, TLS 1.2
Authentication method	RADIUS, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, DHCP client, Dynamic VLAN Support (GVRP), static routing, Class of Service (CoS), TFTP client, 4MB packet buffer, Type of Service (ToS), Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control, Smart Fans
Compliant standards	IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3p, IEEE 802.3an, IEEE 802.3az
Processor	X ARM Cortex-A9 + Cortex-R5
Ram	256 MB
Flash memory	64 MB
Status indicators	Power, fan, link/activity/speed
Expansion connectivity
Interfaces	24 x 10GBase-T RJ-45 4 x 25GBase-X SFP28 1 x console RJ-45
Power
Power device	Internal power supply
Voltage required	AC 120/230 V (50/60 Hz)
Power consumption operational	90 Watt
Power consumption stand by	33 Watt
Miscellaneous
Included accessories	4 rubber feet, 2 x 19" mounting brackets
Cables included	1 x console cable
Rack mounting kit	Included
Mtbf	572 820 hours
Compliant standards	FCC Class A certified, UL, BSMI, CB, IC, VCCI Class A
Dimensions weight
Width	44.1 cm
Depth	20.95 cm
Height	4.4 cm
Weight	3.07 kg
Environmental parameters
Min operating temperature	-5 °C
Max operating temperature	50 °C
Humidity range operating	0 - 95% (non-condensing)
Min storage temperature	-20 °C
Max storage temperature	70 °C
Humidity range storage	0 - 95% (non-condensing)
