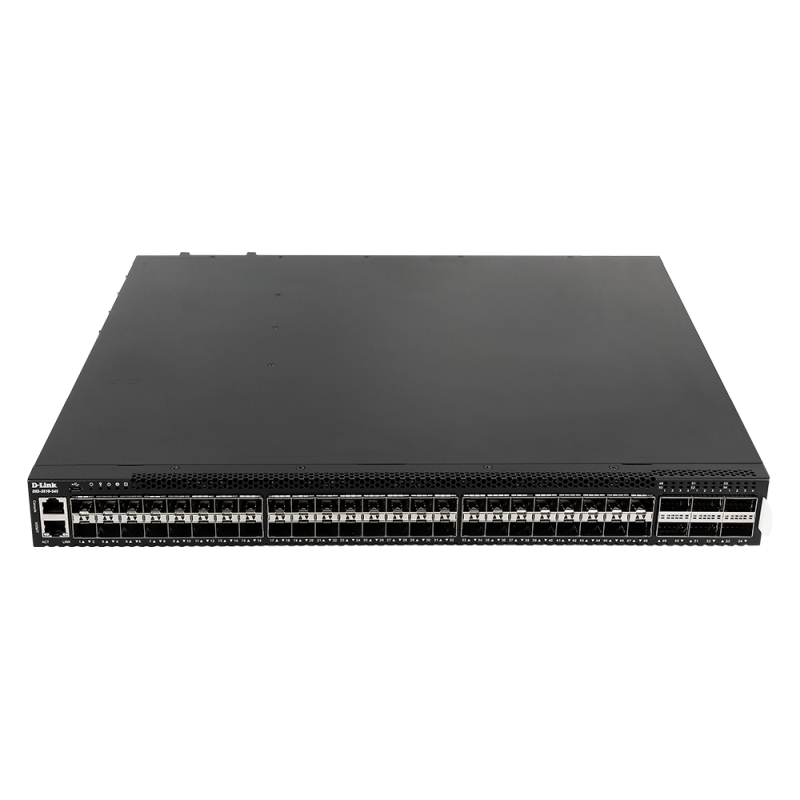

D-Link DXS-3610-54S Managed L3 None 1U Black

Gigabit Ethernet · VLAN · Switches · Managed · Layer 3

Manufacturer: D-Link

Availability: Out of stock

Manufacturer part number: DXS-3610-54S

Free shipping

$18,037.96

Qty:

D-Link DXS-3610-54S Managed L3 None 1U Black

Gigabit Ethernet · VLAN · Switches · Managed · Layer 3

OpenFlow Switching that Stacks Above the Competition The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules. Robust and Versatile Stacking Capability Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.

OpenFlow Switching that Stacks Above the Competition.
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy.
Robust and Versatile Stacking Capability.
Enhanced Manageability for Peace of Mind.

Management features
Quality of service qo s support	Y
Multicast support	Y
Web based management	Y
Arp inspection	Y
Switch layer	L3
Switch type	Managed
Ports interfaces
Usb 2 0 ports quantity	1
Qsfp28 ports quantity	6
Console port	RJ-45
Sfp module slots quantity	48
Basic switching rj 45 ethernet ports type	None
Networking
Flow control support	Y
10 g support	Y
Igmp snooping	Y
Spanning tree protocol	Y
Port mirroring	Y
Link aggregation	Y
Vlan support	Y
Ip routing	Y
Head of line hol blocking	Y
Full duplex	Y
Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x
Virtual lan features
Virtual lan features	MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN
Data transmission
Jumbo frames	9436
Jumbo frames support	Y
Static route	Y
Number of queues	8
Forwarding rate	1607.04 Mpps
Switching capacity	2211.84 Gbit/s
Mac address table	294912 entries
Security
Access control list acl	Y
Ssh ssl support	Y
Bpdu filtering protection	Y
Dhcp features	DHCP client,DHCP server,DHCP snooping
Protocols
Management protocols	SNMP v1/v2c/v3
Design
Certification	CB, cUL, LVD
Electromagnetic compatibility	FCC, CE, C-Tick, IC, VCCI
Number of fans	5 fan(s)
Colour of product	Black
Form factor	1U
Rack mounting	Y
Performance
Mean time between failures mtbf	94262 h
Packet buffer memory	32 MB
Noise level	79.4 dB
Virtual stacking units	32
Physical stacking units	12
Stackable	Y
Power
Redundant power supply rps support	Y
Power consumption max	320.8 W
Power consumption typical	120.6 W
Ac input frequency	50/60 Hz
Ac input voltage	110 - 240 V
Power supply included	Y
Power over ethernet po e
Power over ethernet po e	N
Operational conditions
Heat dissipation	1083 BTU/h
Storage relative humidity h h	0 - 95%
Operating relative humidity h h	0 - 95%
Storage temperature t t	-40 - 70 °C
Operating temperature t t	0 - 45 °C
Weight dimensions
Weight	9.8 kg
Height	43.5 mm
Depth	487.4 mm
Width	441 mm
